Product details

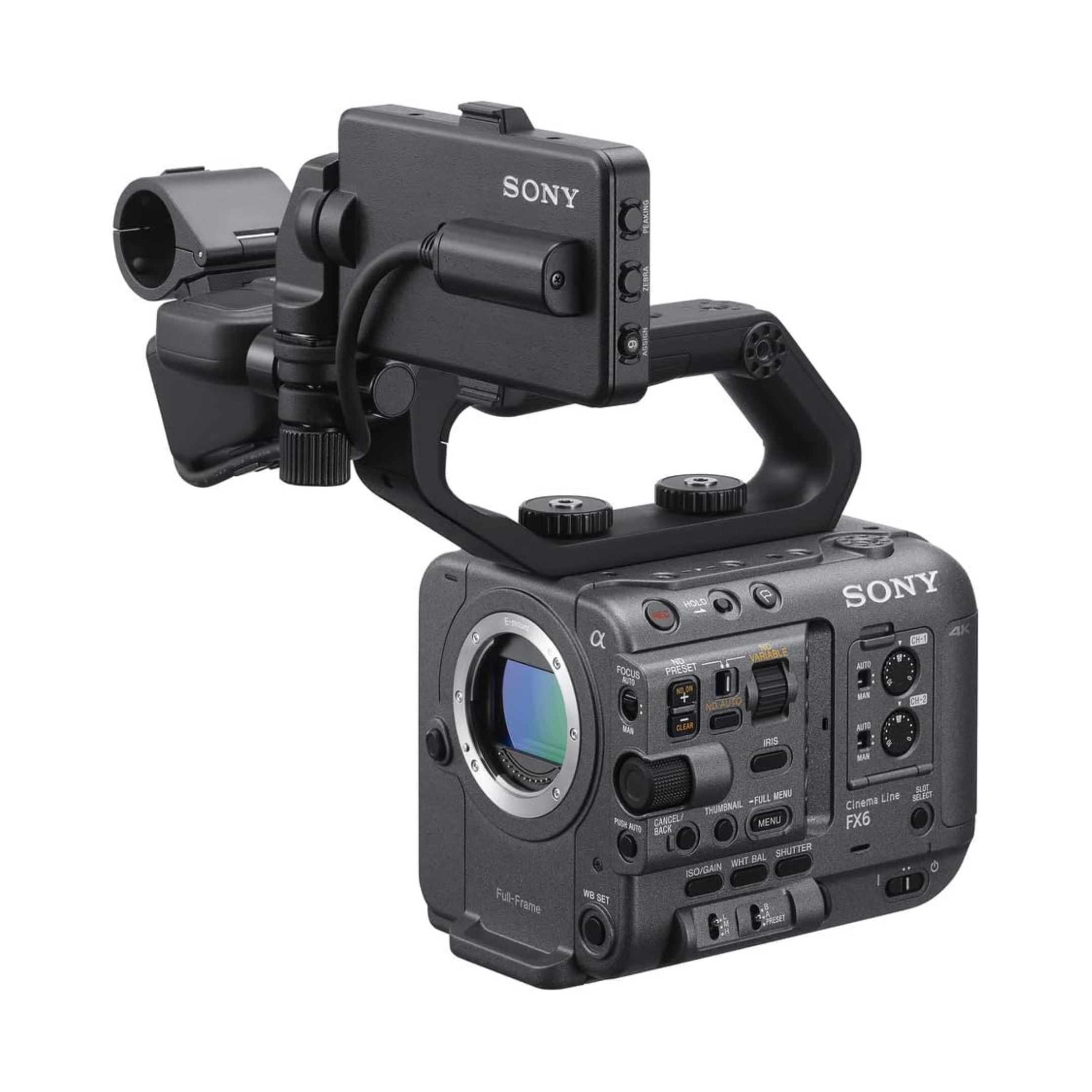

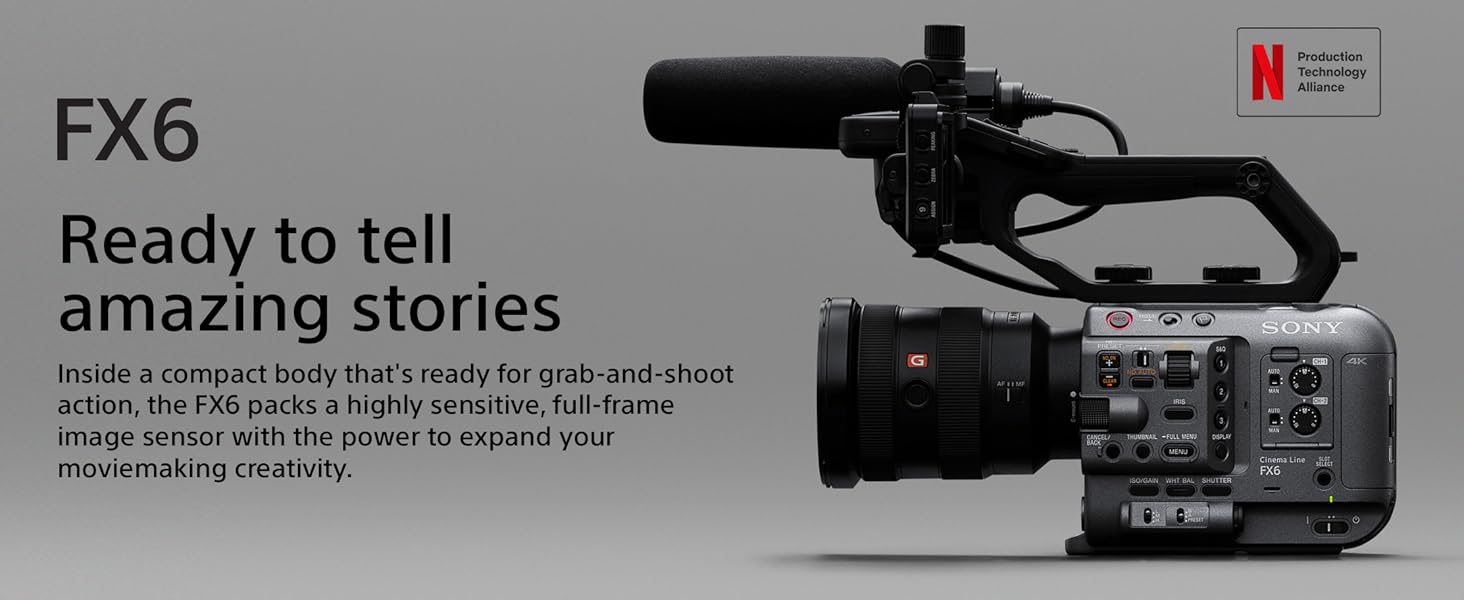

- VERSATILE: The FX6 Full-Frame Camera from Sony was developed to offer versatile, cine-style imaging in a truly compact form. With the ability to capture up to 15+ stops of dynamic range, Sony’s S-Cinetone gamma for filmlike skin tones, and up to 10-bit, 4:2:2 XAVC-I recording, the FX6 is poised to both supplement your FX9 or VENICE capture and to nimbly take on documentary, gimbal, and drone shoots on its own.

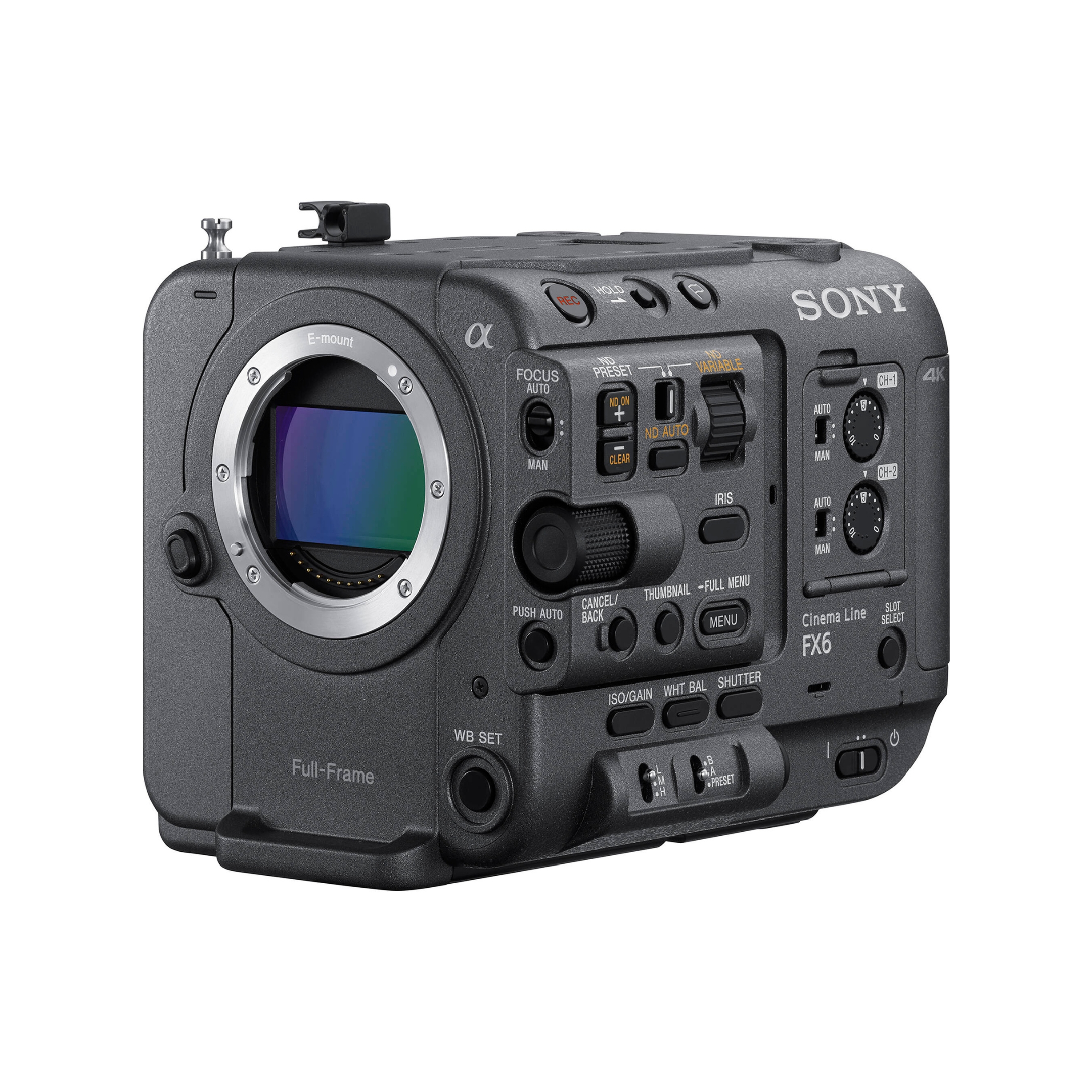

- 4K FULL FRAME: The FX6 camera combines a 4K full-frame Exmor R sensor with a BIONX XR engine for extremely sensitive capture in a range of settings using a base ISO of 800 as well as an ISO 12800 high-sensitivity mode for nuanced low-light scenes.

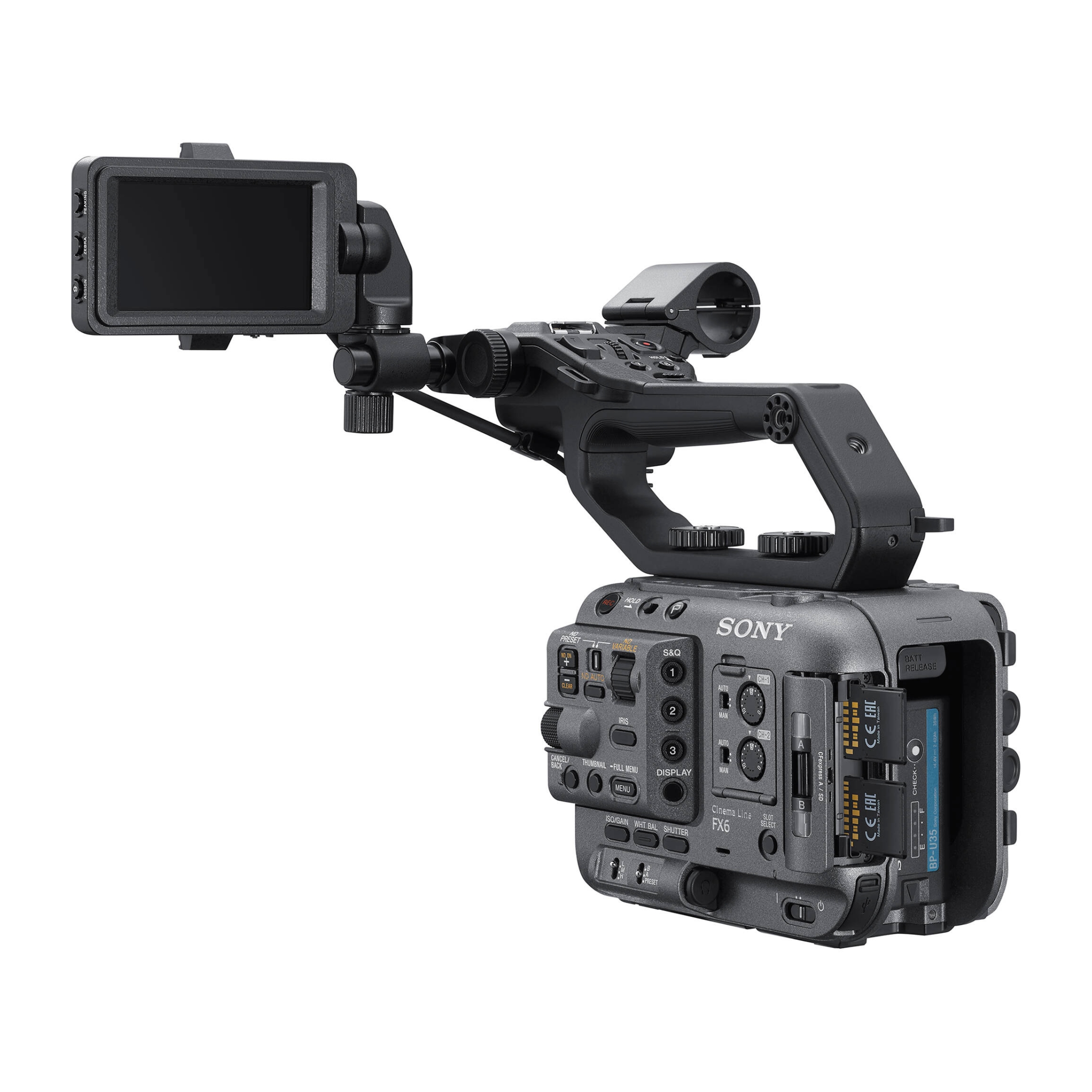

- EASY OPERATION: Weighing just under 2 lb, the FX6 body is a full 2 lb lighter than the FX9 and measuring 6 x 4.6, it packs a full-frame sensor into a body comparable to the S35-sensor Sony FS5. Fast and accurate phase-detection autofocus with both Face Detection and real-time Eye autofocus, both auto and manual ND filter settings for quick exposure compensation, and a 3.5″ LCD monitor that boasts timesaving touchscreen access to key menu settings and versatile positioning for easy operating.
- KEY FEATURES: 4K Full-Frame 10.2MP CMOS Exmor R Sensor – DCI 4K60p | UHD 4K120 | 1080p240 – 15+ Stops of Dynamic Range in S-Log 3 EI – Compact Form Weighs Just less 2 lb – Phase Detection AF/Face Tracking/Eye AF – Base 800-12,800 ISO / 320-409,600 Max – S-Cinetone, S-Log3, HLG Modes – 10-Bit 4:2:2 XAVC-I/16-Bit Raw Output – Dual CFexpress Type A/SDXC Card Slots
Specifications
-
General
-
-
LENS MOUNT
E-mount
-
-
-
Size & Weight
-
-
WEIGHT (INCLUDING SUPPLIED ACCESSORIES) (approx.)
5 lb 11 oz (2.59 kg) (with Viewfinder, Grip Remote Control, BP-U35 battery, SEL24105G LENS, Lens Hood, Handle, MIC holder)
-
WEIGHT (MAIN UNIT ONLY) (approx.)
1 lb 15 oz (890 g)
-
-
-
DIMENSIONS (W X H X D) (BODY WITHOUT PROTRUSIONS) (approx.)
4.49 x 4.57 x 6.02 ” (114 x 116 x 153 mm) (body without protrusions)
-
-
-
Power
-
-
POWER CONSUMPTION
Approx. 18.0 W (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device)
-
BATTERY OPERATING TIME
Approx. 105 min. with BP-U35 battery (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device), Approx. 215 min. with BP-U70 battery (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device)
-
-
-
POWER REQUIREMENTS
DC 19.5 V
-
-
-
Operation
-
-
STORAGE TEMPERATURE
–4 °F to +140 °F (–20 °C to +60 °C)
-
-
-
OPERATING TEMPERATURE
32 °F to 104 °F (0 °C to 40 °C)
-
-
-
Recording Format (Video)
-
-
XAVC INTRA
XAVC-I DCI4K 59.94p mode: VBR, MAX bitrate 600 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 50p mode: VBR, MAX bitrate 500 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 29.97p mode: VBR, MAX bitrate 300 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 25p mode: VBR, MAX bitrate 250 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 24p mode: VBR, MAX bitrate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 23.98p mode: VBR, MAX bitrate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 59.94p mode: VBR, MAX bitrate 600 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 50p mode: VBR, MAX bitrate 500 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 29.97p mode: VBR, MAX bitrate 300 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 25p mode: VBR, MAX bitrate 250 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 23.98p mode: VBR, MAX bitrate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 59.94p mode: CBG, MAX bitrate 222 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 50p mode: CBG, MAX bitrate 223 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 29.97p mode: CBG, MAX bitrate 111 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 25p mode: CBG, MAX bitrate 112 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 23.98p mode: CBG, MAX bitrate 89 Mbps, MPEG-4 AVC/H.264
-
-
-
XAVC LONG
XAVC-L QFHD 29.97p/25p/23.98p mode: VBR, MAX bitrate 100 Mbps, MPEG-4 H.264/AVC, XAVC-L QFHD 59.94p/50p mode: VBR, MAX bitrate 150 Mbps, MPEG-4 H.264/AVC, XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode: VBR, MAX bitrate 50 Mbps, MPEG-4 H.264/AVC, XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode: VBR, MAX bitrate 35 Mbps, MPEG-4 H.264/AVC
-
-
-
Recording Format (Audio)
-
-
RECORDING FORMAT (AUDIO)
LPCM 24 bits, 48 kHz, 4 channels
-
-
-
Recording Frame Rate
-
-
XAVC INTRA
XAVC-I DCI4K mode: 4096 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P, 24P, XAVC-I QFHD mode: 3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P, XAVC-I HD mode: 1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P
-
-
-
XAVC LONG
XAVC-L QFHD mode: 3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P, XAVC-L HD 50 mode: 1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P, XAVC-L HD 35 mode: 1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P
-
-
-
Recording/ Playback Time
-
-
PROXY AUDIO
XAVC Proxy: AAC-LC, 128 kbps, 2 channels
-
XAVC LONG
XAVC-L QFHD 29.97p/25p/23.98p When using CEA-G160T (160 GB): Approx. 170 minutes When using CEA-G80T (80 GB): Approx. 86 minutes, XAVC-L QFHD 59.94p/50p When using CEA-G160T (160 GB): Approx. 115 minutes When using CEA-G80T (80 GB): Approx. 57 minutes, XAVC-L HD 50 /29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB): Approx. 320 minutes When using CEA-G80T (80 GB): Approx. 155 minutes, XAVC-L HD 35 29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB): Approx. 430 minutes When using CEA-G80T (80 GB): Approx. 210 minutes
-
-
-
PROXY VIDEO
XAVC Proxy: AVC/H.264 High Profile 4:2:0 Long GOP, VBR 1920 x 1080, 9 Mbps
-
XAVC INTRA
XAVC-I DCI4K/QFHD 59.94p When using CEA-G160T (160 GB): Approx. 30 minutes When using CEA-G80T (80 GB): Approx. 15 minutes, XAVC-I DCI4K/QFHD 50p When using CEA-G160T (160 GB): Approx. 36 minutes When using CEA-G80T (80 GB): Approx. 17 minutes, XAVC-I DCI4K/QFHD 29.97p When using CEA-G160T (160 GB): Approx. 60 minutes When using CEA-G80T (80 GB): Approx. 29 minutes, XAVC-I DCI4K/QFHD 25p When using CEA-G160T (160 GB): Approx. 71 minutes When using CEA-G80T (80 GB): Approx. 35 minutes, XAVC-I DCI4K 24p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB): Approx. 36 minutes, XAVC-I DCI4K/QFHD 23.98p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB): Approx. 36 minutes, XAVC-I HD 59.94p When using CEA-G160T (160 GB): Approx. 78 minutes When using CEA-G80T (80 GB): Approx. 38 minutes, XAVC-I HD 50p When using CEA-G160T (160 GB): Approx. 78 minutes When using CEA-G80T (80 GB): Approx. 38 minutes, XAVC-I HD 29.97p When using CEA-G160T (160 GB): Approx. 150 minutes When using CEA-G80T (80 GB): Approx. 74 minutes, XAVC-I HD 25p When using CEA-G160T (160 GB): Approx. 150 minutes When using CEA-G80T (80 GB): Approx. 74 minutes, XAVC-I HD 23.98p When using CEA-G160T (160 GB): Approx. 185 minutes When using CEA-G80T (80 GB): Approx. 91 minutes
-
-
-
Camera Section
-
-
SHUTTER SPEED
64F to 1/8000 s
-
SENSITIVITY
ISO 800/12800 (Cine EI mode, D55 Light source)
-
SIGNAL-TO-NOISE RATIO
delete
-
-
-
Pixels
Approx. 12.9 megapixels (total), Approx. 10.2 megapixels (effective)
-
BUILT-IN OPTICAL FILTERS
Clear, linear variable ND (1/4ND to 1/128ND)
-
SENSOR TYPE
35 mm full-frame, single-chip CMOS image sensor
-
-
-
Slow & Quick Motion
-
White Balance
-
-
WHITE-BALANCE MODES
Preset, Memory A, Memory B (2000K–15000K)/ATW
-
-
-
Exposure
-
-
GAIN CONTROL
–3 to 30 dB (every 1 dB), AGC
-
-
-
Gamma
-
-
GAMMA CURVE
SDR mode: S-Cinetone, Standard, Still, ITU709, 709tone; HDR mode: HLG_Live, HLG_Natural
-
-
-
Latitude
-
-
LATITUDE
15+ stop
-
-
-
Interface
-
-
GRIP
Minijack (Φ 0.14 ” / 4-pin)
-
TC INPUT/TC OUTPUT
BNC, TC IN/OUT Switchable
-
REMOTE
Stereo mini-minijack (Φ 0.01 “)
-
HEADPHONE OUTPUT
Stereo mini jack (x1), –16 dBu 16 Ω
-
DC INPUT
DC jack
-
-
-
SDI OUTPUT
SDI OUT: BNC, 12G-SDI, 6G-SDI, 3G-SDI (Level A/B)
-
USB
USB Type-C™ (x1), Multi/Micro-B (x1)
-
AUDIO INPUT
XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable, Mic Reference: –30 to –80 dBu
-
SPEAKER OUTPUT
Monaural
-
HDMI OUTPUT
Type A (x1)
-
-
-
Media
-
-
MEDIA TYPE
CF express Type A / SD card (x2), Slot B can be used for saving configuration data.
-
-
-
Monitoring
-
-
LCD
3.46 ” (3.5 type), Approx. 2.76M dots
-
-
-
Built-in Microphone
-
-
BUILT-IN MICROPHONE
Omnidirectional monaural electret condenser microphone (body) (x1), Stereo electret condenser microphone (handle) (x1)
-
-
-
Wi-Fi/NFC
-
-
FREQUENCY BAND
2.4 GHz bandwidth, 5.2/5.3/5.6/5.8 GHz bandwidth
-
SUPPORTED FORMAT
IEEE 802.11 a/b/g/n/ac
-
-
-
NFC
NFC Forum Type 3 Tag-compliant
-
SECURITY
WEP/WPA-PSK/WPA2-PSK
-
-
-
Supplied Accessories
-
-
SUPPLIED ACCESSORIES
Handle (1), LCD monitor (1), Grip remote control (1), AC Adapter (1), Power cord (1), Battery charger (1), Battery pack (1), USB-C cable (1), Liquid Crystal Display hood (1), Cold shoe kit (1), Lens mount cap (1), Handle connector cap (1), Before Using This Unit (1), Warranty booklet (1)
-
-
