BOYA BY-WM8 Pro-K1 UHF Dual-Channel Wireless Microphone System

• Dual-Channel Wireless Receiver
• Consists of One Transmitter and One Receiver
• UHF transmission with 48UHF channels
• Ideal for ENG/EFP, DSLR Video
• Broadcast-Quality Sound
• Operation range can reach up to 100m
• Adjustable MONO and Stereo mode
• Powered by one 2 x AA batteries for both transmitter and receiver

UHF Dual-Channel Wireless Microphone System
The BOYA BY-WM8 Pro is an upgraded edition of UHF Dual-Channel Wireless Microphone System and can be used to capture audio for live sound, ENG, broadcast and film, talk shows, conferences, and more.

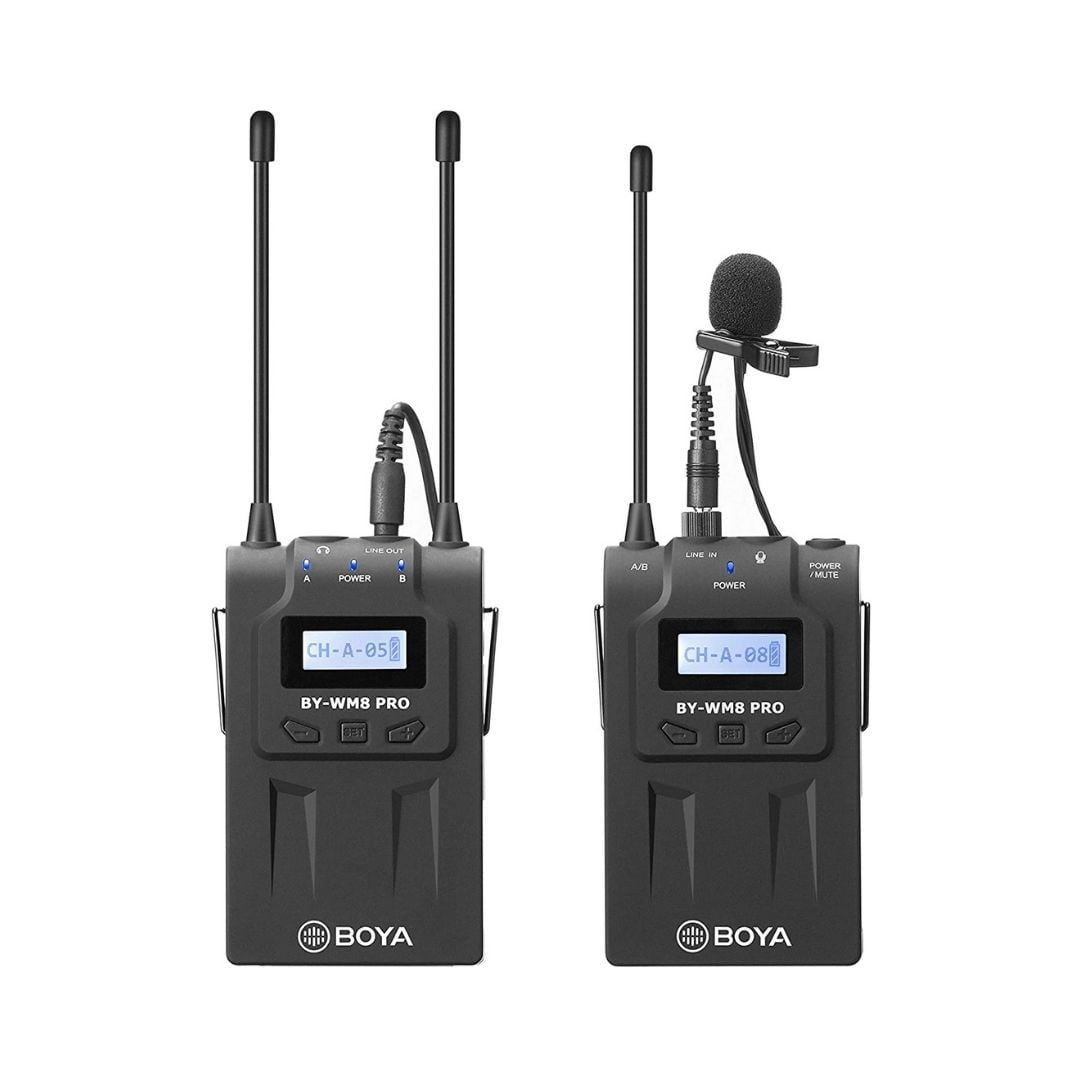

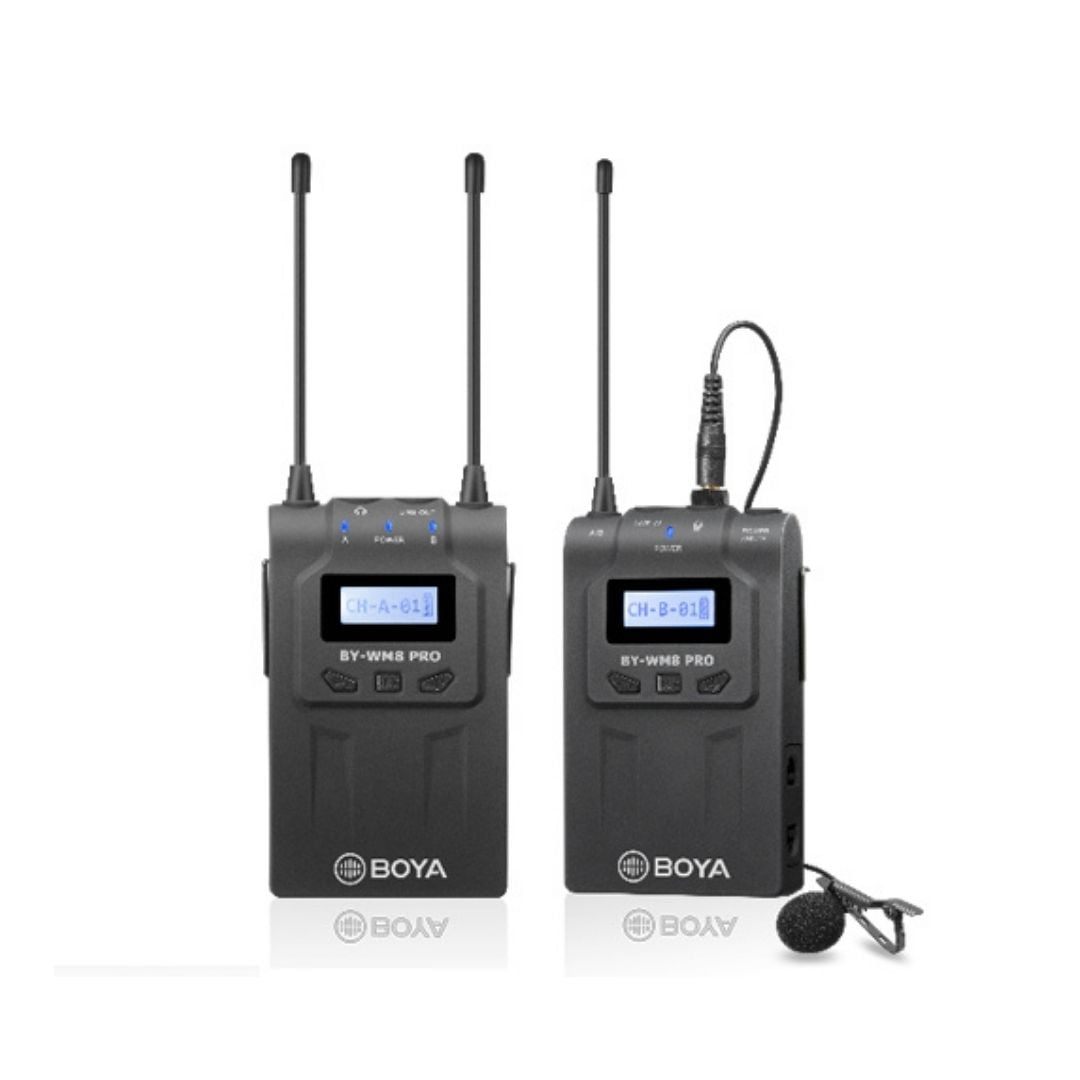

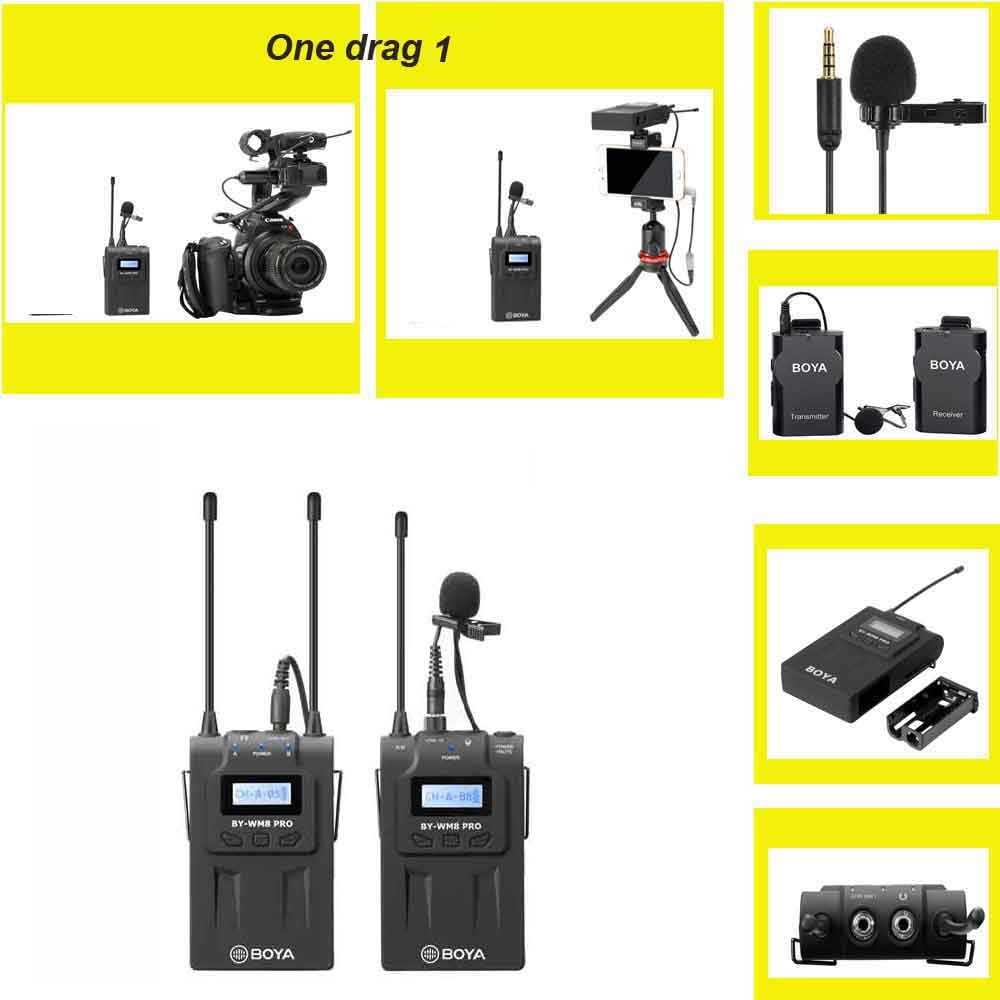

The BY-WM8 Pro-K1 system consists of a bodypack transmitter, a camera-mount receiver, and two
omnidirectional lavalier microphones. Also included with this system is a shoe-mount adapter,
a single 1/8″ to XLR output cable, a single 1/8 to 1/8″ output cable, carrying case.

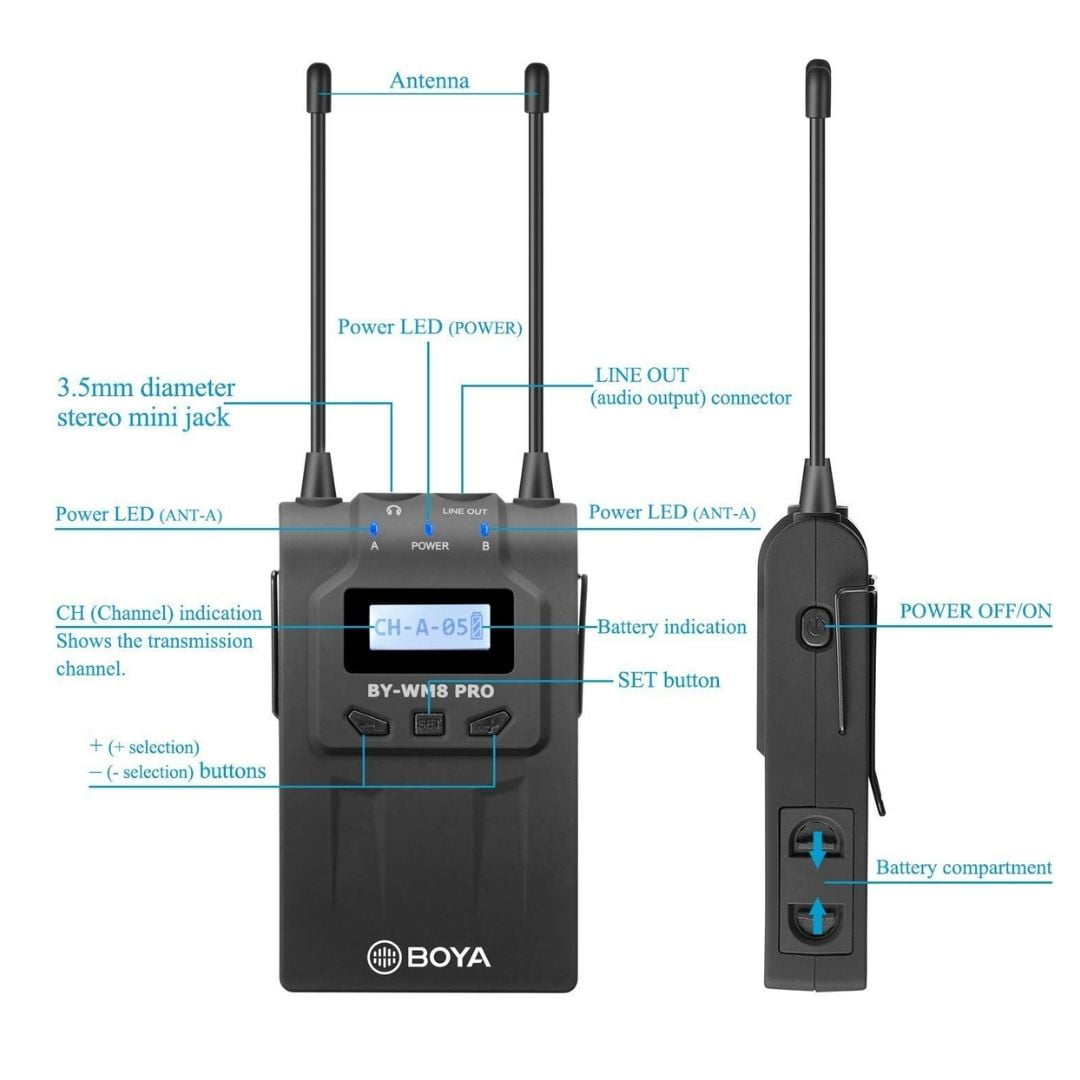

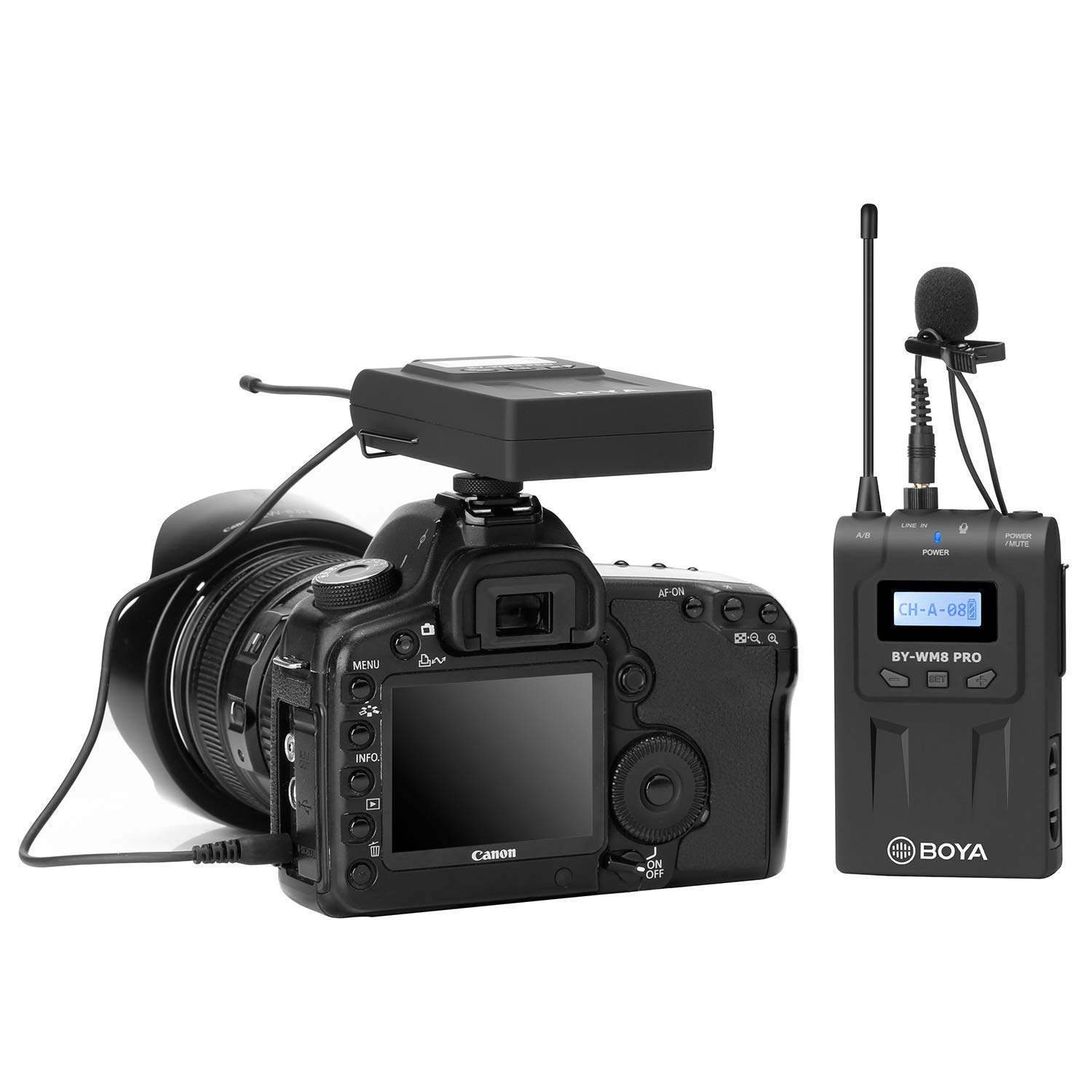

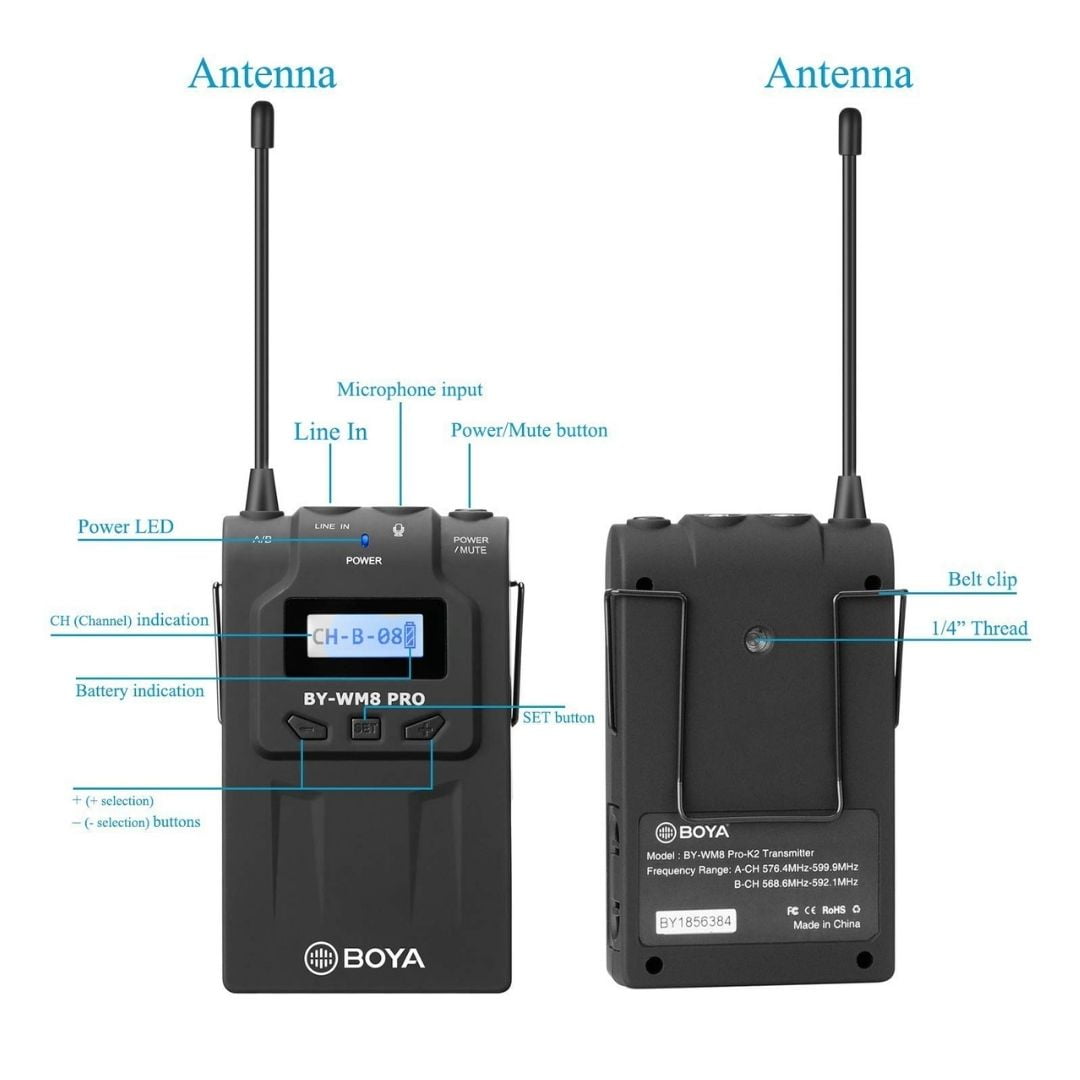

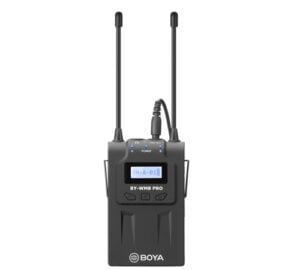

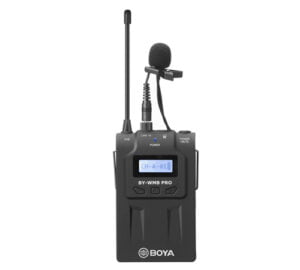

The camera-mountable receiver features a wide-switching RF bandwidth, an easy-to-read LCD display, and a 3.5mm headphone jack for real-time monitoring. And the bodypack transmitter is equipped
with a crystal-controlled PLL synthesizer, a muting function, a 1/8″ mic input, and a 1/8″ line-in jack.

-Digital Companding Circuitry
-User-friendly menu operation with more control options
-Auto-Lock function avoids accidental changing of settings
-One Mic input and one Line Input for the transmitter
-Monitoring of receiver via headphones directly
-Wide range of accessories adapts the system to most of the requirements

Specifications:
Oscillator Type: PLL synthesized control oscillator
RF Output Power: 10mW
Channels: 48
Frequency Response: 40Hz-18kHz
Distortion: 0.5% or less
Reference Audio Input Level: -60dBV
Operation Range: 100m/ 300″(without obstacle)
Power Supply: 2 * AA batteries
Item Size: 10.3 * 6.2 * 2.2cm / 4.1 * 2.4 * 0.9in
Item Weight: 82g / 2.9oz(transmitter); 92g/ 3.2oz(receiver)
Package Size: 23.5 * 19 * 5cm / 9.3 * 7.5 * 2in
Package Weight: 640g / 1.4lbs

Note:

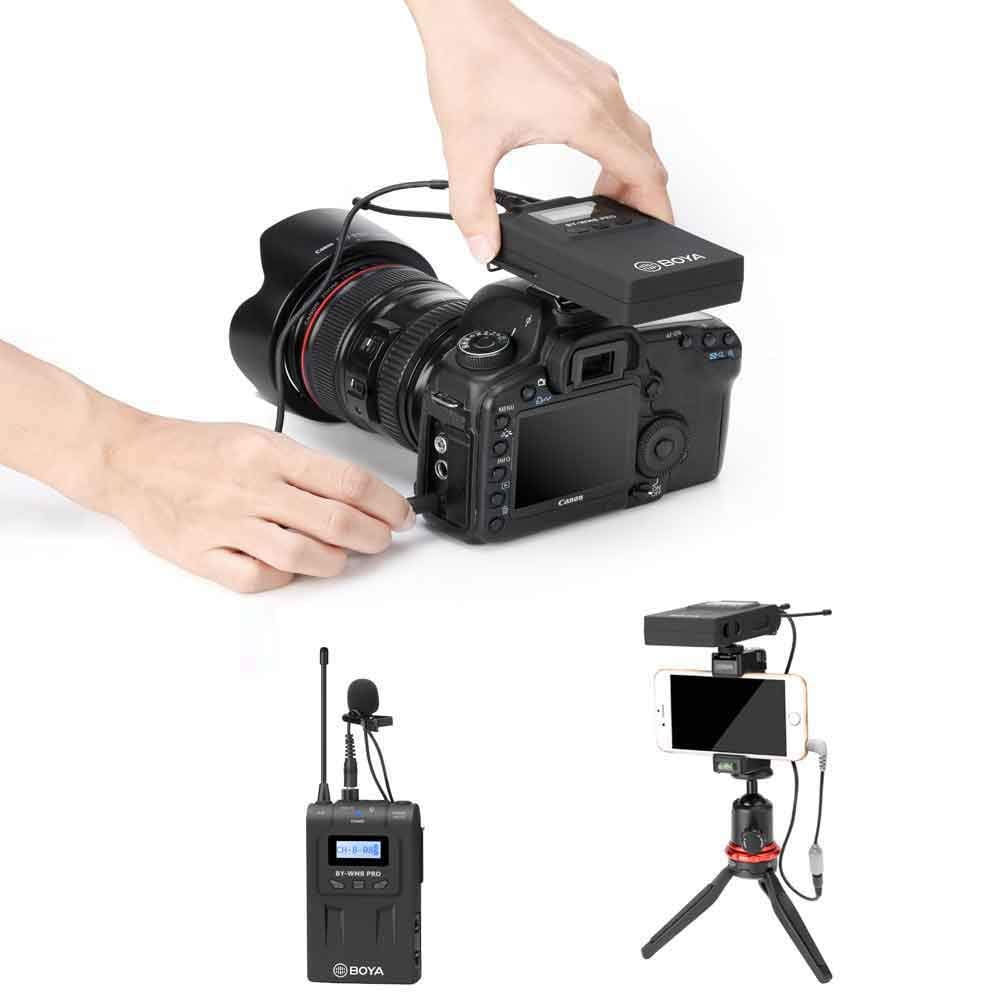

The camera, smartphone, phone holder, mini tripod stand and headphone showed in the pictures are not included.

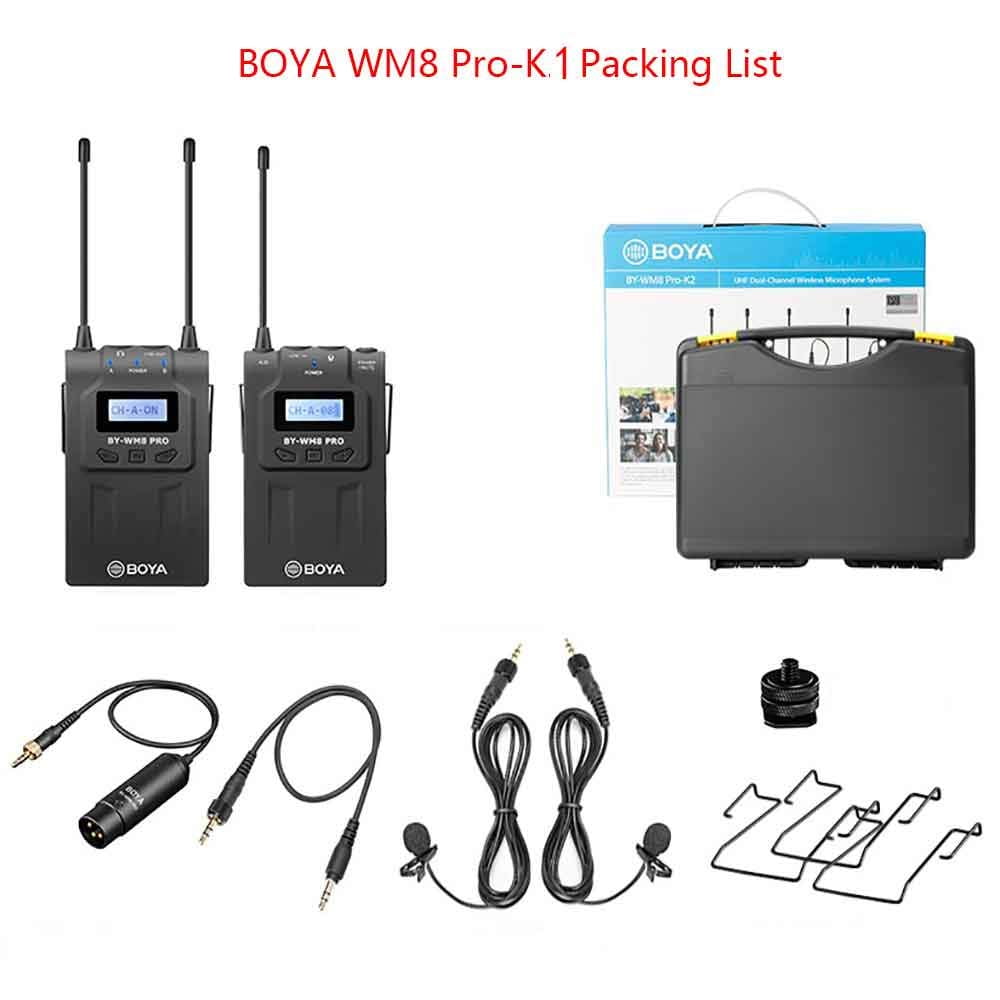

Package List:
1 * Transmitter
1 * Receiver
1 * Lavalier Microphone
1 * 3.5mm audio cable
1 * XLR Cable
1 * Microphone Holder Clip
1 * Wind Screen
1 * Shoe Mount Adapter
1 * Carry Case
1 * Users’ Manual(English)
1 * Cleaning Cloth
