Product Details
Description
Product details
- 20x Optical Zoom Lens
- HD CMOS Pro Image Sensor
- Full HD Recording
- Outstanding Image Reproduction
- LCD Touchscreen with Electronic Viewfinder
- Dual SD Card Slots
- Intelligent Optical Image Stabilization System
- Ultra-compact with Detachable Handle
- Assignable Buttons
- Ergonomic, Portable Design

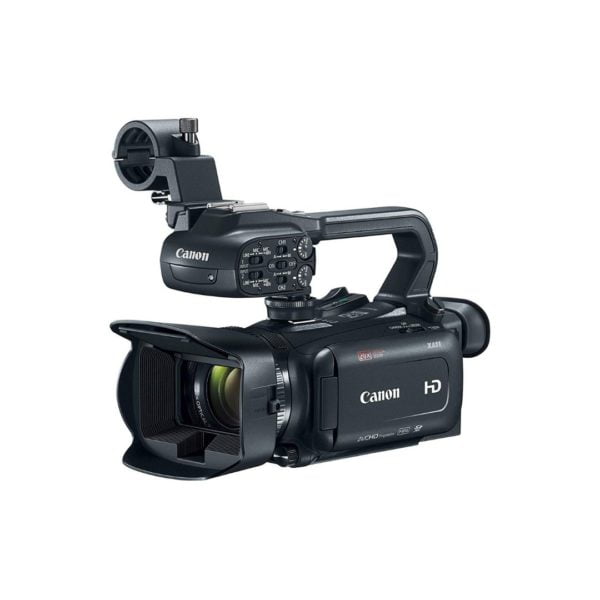

The XA11 Professional Camcorder combines an advanced HD CMOS Pro Image Sensor, the powerful DIGIC DV 4 Image Processor and a versatile 20x High Definition optical zoom lens with a focal length range of 26.8–576mm to produce Full HD content of incredible caliber. The Wide DR Gamma and Highlight Priority modes help ensure a natural range of tones and colors for realistic and eye-catching results. Recorded video remains stable thanks to a reliable 5-axis image stabilization system. Two XLR terminals mean sophisticated and convenient audio recording on two separate channels. Ideal for a wide variety of applications, the XA11 delivers outstanding video quality in a powerful, versatile and portable package.
20x Optical Zoom Lens
The XA11 Professional Camcorder features a Genuine Canon 20x HD Zoom Lens that provides a highly versatile zoom range with 35mm equivalent of 26.8–576mm, and a minimum object distance of just 23.6 inches (60cm). The impressive image quality is enhanced by an 8-blade Circular Aperture design which helps create smooth out-of-focus areas. An endless-type focus and zoom control includes user-programmable direction and sensitivity modes.
HD CMOS Pro Image Sensor
The XA11 Professional Camcorder features a 1/2.84-inch, 2.91 Megapixel HD CMOS Pro Image Sensor that captures approximately 2136×1362 pixels. Thanks to the sensor’s high sensitivity, the XA11 helps provide vivid, accurate recording through an excellent signal-to-noise ratio. Its low-luminance noise rating of +3 dB allows capture of clear images with incredible detail even in low light.
Full HD Recording
The XA11 Professional Camcorder can record in Full HD resolution in both AVCHD and MP4 recording codecs, at multiple bit rates, and even simultaneously. Dual Recording offers format choices that are useful for various post-capture options. Simultaneous recording is available in AVCHD format and web-ready MP4 format, as well as MP4 at different bit rates. Native 24p matches the frame rate of a traditional film camera for ‘film-like’ quality.
Outstanding Image Reproduction
The XA11 Professional Camcorder represents Canon’s Full HD System, delivering truly excellent image quality and reproduction in a wide range of shooting situations. With its 20x Optical Zoom HD Video lens, its HD CMOS Pro Image Sensor and the powerful DIGIC DV 4 Image Processor working together to capture and process the images at hand, the XA11 is positioned to deliver HD video that is nothing short of stunning.
LCD Touchscreen with Electronic Viewfinder
The 3.0-inch 460,000 dot LCD display provides vivid colors, high contrast and a wide-view angle (over 80° at all angles). The 0.24-inch tilt-type color electronic viewfinder has 100% field of view, and 1.56 million dots of resolution help ensure critical focus adjustment, with peaking applied if necessary. A joystick located to the right of the viewfinder enables control of camera settings on the viewscreen without having to use touch panel controls.
Dual SD Card Slots
The XA11 Professional Camcorder is compatible with universal SDHC and SDXC memory cards, which provide super-high capacity and ultra-fast data transfer. Double-slot recording allows simultaneous recording to each of the two SD memory card slots for an instant backup. With Relay Recording, the XA11 camcorder automatically switches video recording from one SD memory card to the other when the first memory card becomes full.
Intelligent Optical Image Stabilization System
The XA11 Professional Camcorder offers a powerful optical image stabilization system suited to help reduce image blur in a wide variety of shooting situations. The different image stabilization options can be selected manually, or automatically through Intelligent IS. Dynamic Mode electronically corrects roll and tilt. Image stabilization options include Dynamic IS, Macro IS and Powered IS.

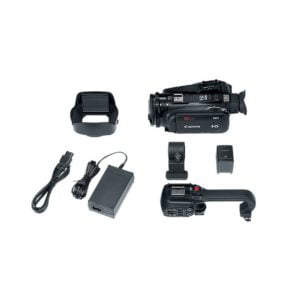

In the Box
Canon XA11 Compact Full HD Camcorder with HDMI and Composite Output
Canon CA-570 Compact AC Power Adapter
Canon BP-820 Lithium-Ion Single Battery Pack (1780mAh, Retail Packaging)
Mic Holder (with Mounting Screw)
Handle Unit
Lens Hood with Barrier
Lens Cap
Limited 1-Year Warranty
Canon XA11 Specs
| Sensor Resolution | Actual: 3.09 Megapixel (2208 x 1398) Effective: 2.91 Megapixel (2136 x 1362) |
| Sensor Type | 1/2.84″ CMOS Sensor |
| Image Stabilization | Optical in Integrated Lens Digital |
| Shutter Speed | 1/6 to 1/2000 sec |
| Minimum Illumination | 1.2 Lux at 1/30 Shutter Speed 0.1 Lux at 1/2 Shutter Speed |
| White Balance | 2000 to 15,000K |
| Focal Length | 3.7 to 73.4mm (35mm Equivalent Focal Length: 26.8 to 576mm) |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 400x |
| Maximum Aperture | f/1.8 to 2.8 |
| Minimum Aperture | f/16 |
| Minimum Focus Distance | Entire Zoom Range: 23.6″ / 60.0 cm Wide: 0.4″ / 1.0 cm |
| Filter Size | 58 mm |
| Control Rings | Focus Zoom |
| Focus Control | Autofocus Manual Focus |
| Recording Modes | AVCHD: 1920 x 1080p at 23.98/29.97/59.94 fps (17 to 28 Mb/s) 1920 x 1080i at 59.94 fps (24 Mb/s) MP4: 1920 x 1080p at 23.98/29.97/59.94 fps (17 to 35 Mb/s) 1280 x 720p at 23.98/29.97/59.94 fps (4 to 8 Mb/s) 640 x 360p at 23.98/29.97 fps (3 Mb/s) |
| Variable Frame Rates | 6 Up to 36000 fps |
| Gamma Curve | Wide DR |
| Audio Recording | AVCHD: 2-Channel LPCM Audio MP4: 2-Channel AAC Audio |
| Still Image Support | JPEG 2 MP (1920 x 1080) |
| IP Streaming | Yes |
| Video Connectors | 1 x 1/8″ (3.5 mm) TRRS A/V (Composite) Output 1 x Mini-HDMI Output |
| Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input 1 x 1/8″ / 3.5 mm Stereo Input |
| Built-In Microphone Type | Stereo |
| Other I/O | 1 x 2.5 mm LANC Control Input 1 x USB Mini-B Output |
| Size | 3.0″ |
| Resolution | 460,000 Dot |
| Display Type | Articulating Touchscreen LCD |
| EVF Display Type | LCD |
| Screen Size | .24″ |
| EVF Resolution | 1,560,000 Dots |
| Battery Type | Canon BP-8 Series |
| Power Connectors | 1 x Barrel (8.4 VDC) Input |
| Power Consumption | 4.9 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C (Recommended) |
| Accessory Mount | 1 x Cold Shoe Mount |
| Tripod Mounting Thread | 1/4″-20 Female |
| Built-In Light | Yes (Infrared) |
| Dimensions | 9.09 x 7.09 x 5.16″ / 231 x 180 x 131 mm (With Grip) 7.17 x 4.29 x 3.31″ / 182 x 109 x 84 mm (Without Grip) |
| Weight | 2.49 lb / 1.13 kg |
| Package Weight | 4.7 lb |
| Box Dimensions (LxWxH) | 11 x 10.75 x 8.5″ |
