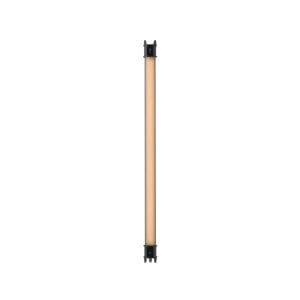

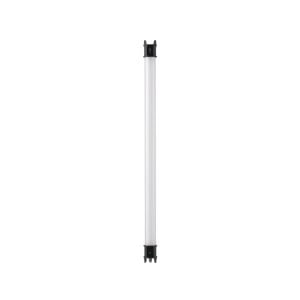

Nanlite expands their LED tube light line with the second-generation PavoTube II 15C RGB LED Tube Light, featuring an improved easy-to-use fixture with a brighter output compared to the original PavoTube 15C. At over 423 lux at 3.3′ (5600K), the PavoTube II 15C delivers exceptional color accuracy with a wider color temperature range from 2700 to 7500K, as shown by its CRI and TLCI scores of 97 and 98. Measuring 2′ in length, this versatile and lightweight tube light is ideal for filmmakers and content creators setting up lighting in the studio or on location. With 0 to 100% dimming and 15 preprogrammed special lighting effects, it can be used as key, fill, backlight, or for in-camera practical effects.

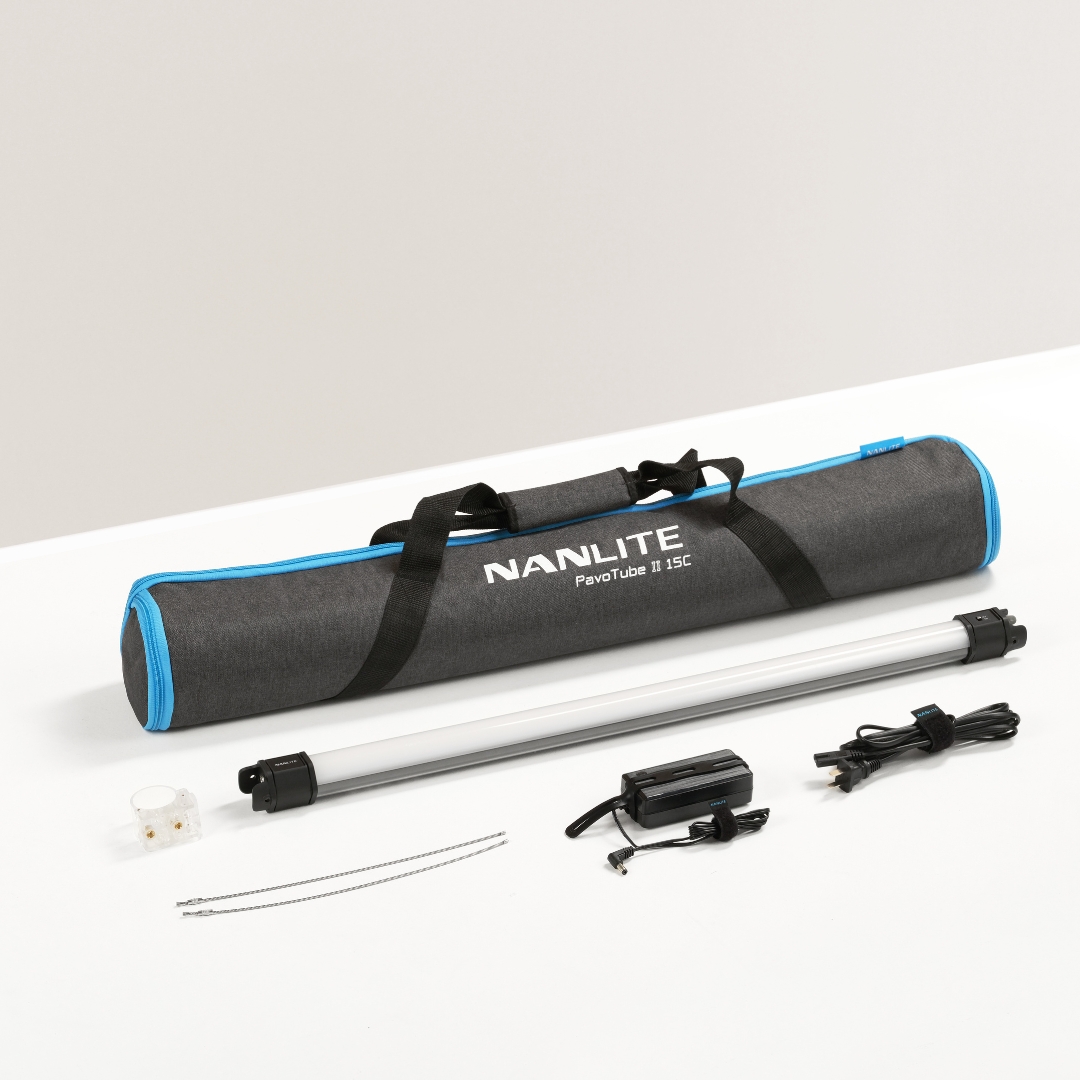

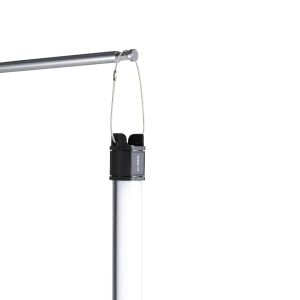

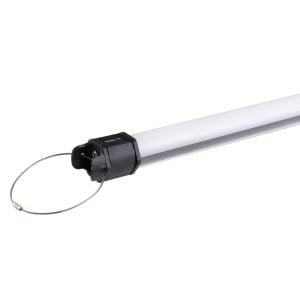

Multiple improvements include faster recharging via an included AC adapter or a USB-C port on the back of the fixture, seamless diffusion, green-magenta shift by +/- 150, Bluetooth and 2.4 GHz for wireless control, DMX/RDM capability, and smaller endcaps to minimize distractions on your frame. The PavoTube II 15C has a built-in rechargeable battery that offers a runtime up to 2 hours at 100% brightness. The light also offers universal power capability via an included multi-voltage AC adapter or runs on optional external batteries. T12 compatible with a 1.9″ diameter, it has a clip equipped with two 1/4″-20 mounts, two steel safety wires for hanging, and a padded carry bag for storage and transport.

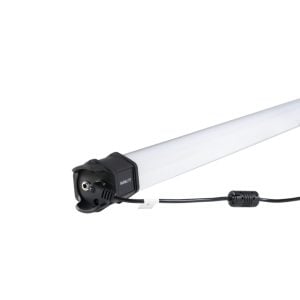

The light’s built-in battery recharges 1 hour and 10 minutes faster than previous generations. You can charge it using the USB-C port on the back of the fixture or connect it to the included AC adapter to the PavoTube II 15C’s endcap for continuous power. You also have the option of using D-tap batteries with the separately available CB-DT/DC cable.
- Up to 2 hours of battery life at 100% brightness
- Up to 4 hours at 50% brightness
- Up to 9.5 hours at 10% brightness
- Up to 14 hours at 1% brightness
The PavoTube II 15C features a convenient OLED display and two onboard buttons and knobs for precise and easy local control, but the light can also be controlled remotely.
- You can fully control the light from your smartphone via Bluetooth with the free NANLINK app for iOS and Android
- Built-in 2.4 GHz allows use of the separately available WS-RC-C2 handheld remote or the WS-TB-1 transmitter box for larger setups
- Locking DMX/RDM ports facilitate advanced control and enables the PavoTube II 15C to be quickly adopted into any DMX controlled environment using the separately available CB-DMX-3.5C-1/2 adapter cable
- Requires separately available fabric barndoors and grid accessories
- Lock button prevents accidental setting changes
- Front-facing power switch is recessed to avoid unwanted activation
- Stands vertically with separately available LSFLT12MII foldable floor stand

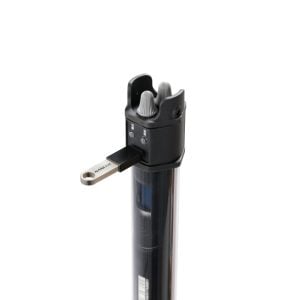

- USB port allows firmware updates
| Model | PavoTube II 15C |
| Rated Power | 30W |
| Input Voltage/Current | DC15V/2A Max, AC100-240V 50/60Hz PD3.0(9-20V)20W Min |
| CCT | 2700K-7500K(G/M±150) |
| CRI | Average 97 |
| TLCI | Average 98 |
| TM-30 Rf | Average 94 |
| TM-30 Rg | Average 101 |
| Dimming | 0-100% |
| Control | On-board, 2.4G, Bluetooth, NANLINK APP, DMX/RDM |
| Effect | Hue Loop, CCT Loop, INT Loop, CCT Flash, HUE Flash, CCT Pulse, Hue Pulse, Storm Auto, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding |
| Product Size | φ48 × 770mm / φ1.89 × 30.31″ |
| Product Weight | Light Fixture: 0.85kg / 1.87lb Power Adapter: 0.2kg / 0.44lb Power Cable 3M: 0.05kg / 0.11lb |
| Master Carton Size | 605 × 305 × 890mm / 23.82 × 12.01 × 35.04″ (1KIT) 455 × 305 × 890mm / 17.91 × 12.01 × 35.04″ (2KIT) 365 × 185 × 885mm / 14.37 × 7.28 × 34.84″ (4KIT) |
| Quantity of Boxes Per Carton | 1KIT: 8 / 2KIT: 6 / 4KIT: 2 |
| Certification | CE, UKCA, RoHS, PSE, KCC, FCC-ID, NCC, KC |
| Model | PavoTube II 15C | |||
|---|---|---|---|---|
| Distance | 0.5M | 1M | 2M | 3M |
|
2700K
|
1231 lux/ 114 fc
|
374 lux/ 35 fc
|
103 lux/ 10 fc
|
48 lux/ 4 fc
|
|
3200K
|
1335 lux / 124 fc
|
391 lux / 36 fc
|
107 lux / 10 fc
|
50 lux/ 5 fc
|
|
5600K
|
1428 lux / 133 fc
|
423 lux / 39 fc
|
113 lux / 10 fc
|
55 lux/ 5 fc
|
|
6500K
|
1460 lux / 136 fc
|
428 lux / 40 fc
|
117 lux / 11 fc
|
58 lux/ 5 fc
|
|
7500K
|
1442 lux/ 134 fc
|
427 lux/ 40 fc
|
115 lux/ 11 fc
|
56 lux/ 5 fc
|
|
R
|
601 lux / 56 fc
|
181 lux / 17 fc
|
50 lux / 5 fc
|
24 lux/ 2 fc
|
|
G
|
1338 lux / 124 fc
|
395 lux / 37 fc
|
108 lux / 10 fc
|
54 lux/ 5 fc
|
|
B
|
219 lux / 20 fc
|
69 lux / 6 fc
|
19 lux / 2 fc
|
9 lux/ 1 fc
|
| Model | PavoTube II 30C |
| Rated Power | 60W |
| Input Voltage/Current | DC15V/4A Max, AC100-240V 50/60Hz PD3.0(12-20V)30W Min |
| CCT | 2700K-7500K(G/M±150) |
| CRI | Average 97 |
| TLCI | Average 98 |
| TM-30 Rf | Average 94 |
| TM-30 Rg | Average 101 |
| Dimming | 0-100% |
| Control | On-board, 2.4G, Bluetooth, NANLINK APP, DMX/RDM |
| Effect | Hue Loop, CCT Loop, INT Loop, CCT Flash, HUE Flash, CCT Pulse, Hue Pulse, Storm Auto, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding |
| Product Size | φ48×1170mm/φ1.89×46.06″ |
| Product Weight | Light Fixture: 1.4kg / 3.09lb Power Adapter: 0.2kg / 0.44lb Power Cable 3M: 0.05kg / 0.11lb |
| Master Carton Size | 455 × 305 × 1300mm / 17.91 × 12.01 × 51.18″ (1KIT) 305 × 305 × 1300mm / 12.01 × 12.01 × 51.18″ (2KIT) 375 × 190 × 1300mm / 14.76 × 7.48 × 51.18″ (4KIT) |
| Quantity of Boxes Per Carton | 1KIT: 8 / 2KIT: 6 / 4KIT: 2 |
| Certification | CE, UKCA, RoHS, PSE, KCC, FCC-ID, NCC, KC |
| Model | PavoTube II 30C | |||
|---|---|---|---|---|
| Distance | 0.5M | 1M | 2M | 3M |
|
2700K
|
1720 lux / 160 fc
|
581 lux / 54 fc
|
174 lux / 16 fc
|
88 lux / 8 fc
|
|
3200K
|
1767 lux / 164 fc
|
599 lux / 56 fc
|
179 lux / 17 fc
|
90 lux / 8 fc
|
|
5600K
|
1910 lux / 177 fc
|
647 lux / 60 fc
|
193 lux / 18 fc
|
97 lux / 9 fc
|
|
6500K
|
1944 lux / 181 fc
|
660 lux / 61 fc
|
196 lux / 18 fc
|
99lux / 9 fc
|
|
7500K
|
1925 lux / 179 fc
|
654 lux / 61 fc
|
195 lux / 18 fc
|
98 lux / 9 fc
|
|
R
|
870 lux / 81 fc
|
303 lux / 28 fc
|
88 lux / 8 fc
|
43 lux / 4 fc
|
|
G
|
1819 lux / 169 fc
|
642 lux / 60 fc
|
181 lux / 17 fc
|
91 lux / 8 fc
|
|
B
|
300 lux / 28 fc
|
106 lux / 10 fc
|
30 lux / 3 fc
|
16 lux / 1 fc
|
