Product details
1.The LED light has 1-48 channels, with no interference in different channels.
2.This light has A, B, C 3 groups, to control the lights in the same group, the master and salve light must in the same channel.

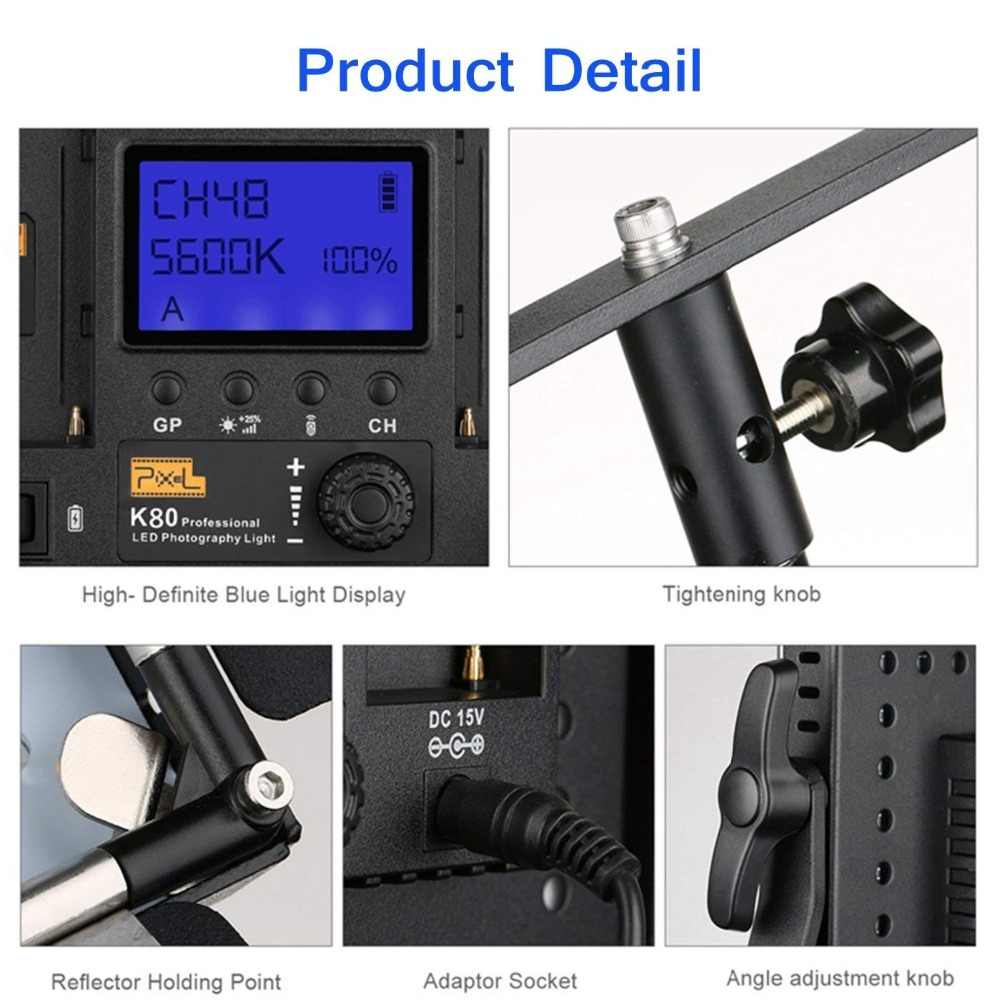

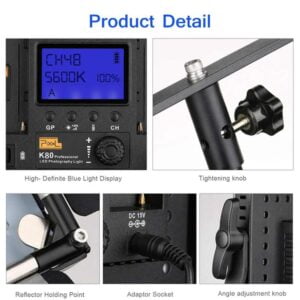

3.The channel, color temperature, group, brightness will show on the LED display screen when you use it.
4.This light illuminates a variable white balance from Tungsten-Daylight from 3200 to 5600K.
5.This LED light can use the recorder battery, more convenient to use for outdoor shooting.
Specification:
Model: K80 LED
Input Power: AC : 110 ~ 240V/50HZ ~ 60HZ DC : 14 ~ 18V 5A

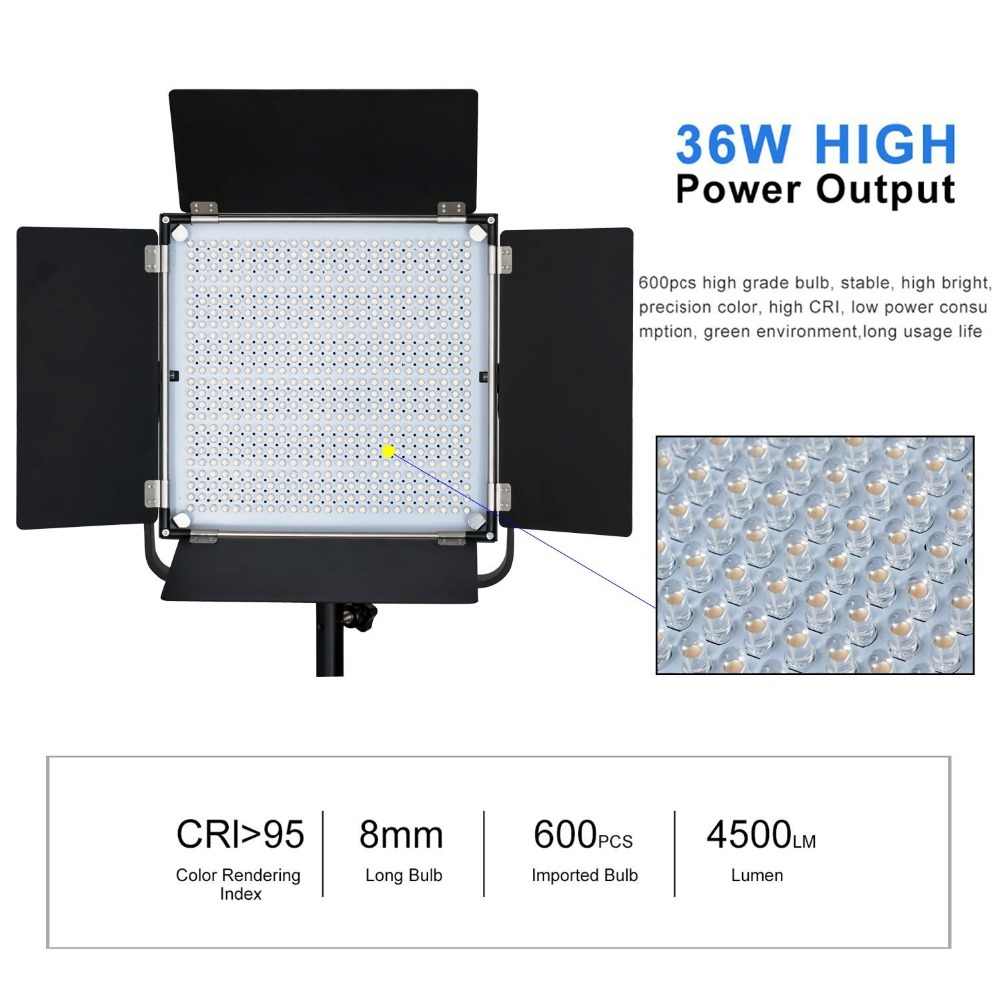

Outer Power: 36 W
Lumen: 4800LM
Adjust Range: P1 – P100 stepless adjust
Color Rendering Index: CRI>95
Color Temperature: 3200K/5600K
Temperature Protect: Yes
Battery: 2pcs NP-F Lithium Battery(not included in package)
LED Life: 50,000 Hrs
Dimension: 24.9*24.1*5.5CM
Net Weight: 1.2KG
Operate Instruction
Channel and Group:
1.This light can be set between 1-48 channel,no interference if the lights in different channel.
2.This light can be set between A,B,C group, each group can have a lot of lights.
3.To control the lights in the same group,you have to set in the same channel first.
Adjust one of the LED light power, the power will sync to the other LED light under the same channel and group.

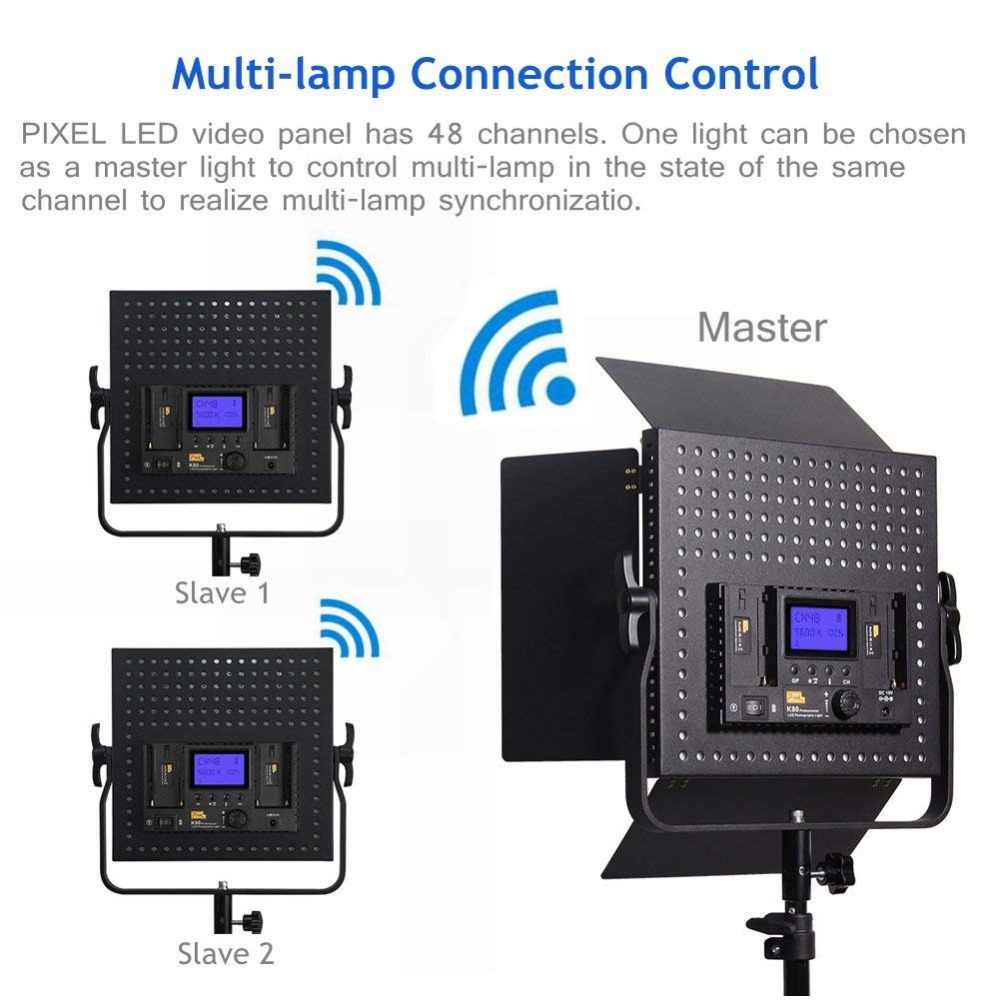

Wireless Control:
1.Make sure the master and slave in the same channel.
2.Brightness adjust in the same group, adjust any light under the same group, the other light under the same group and the same channel will adjust too.
3.Brightness adjust in the different group, press group setting button switch to the group that you want to control, you can adjust the brightness during the group icon keep flashing.
4.Press again control mode button or wait for 4sec to exit the control mode.
Turn off the light power will keep the existing setting, turn on the light again in the next time, all the settings will be the same.
Packing list: (no battery)
1 x LED Light
1 x Input Power Cable
1 x Adaptor

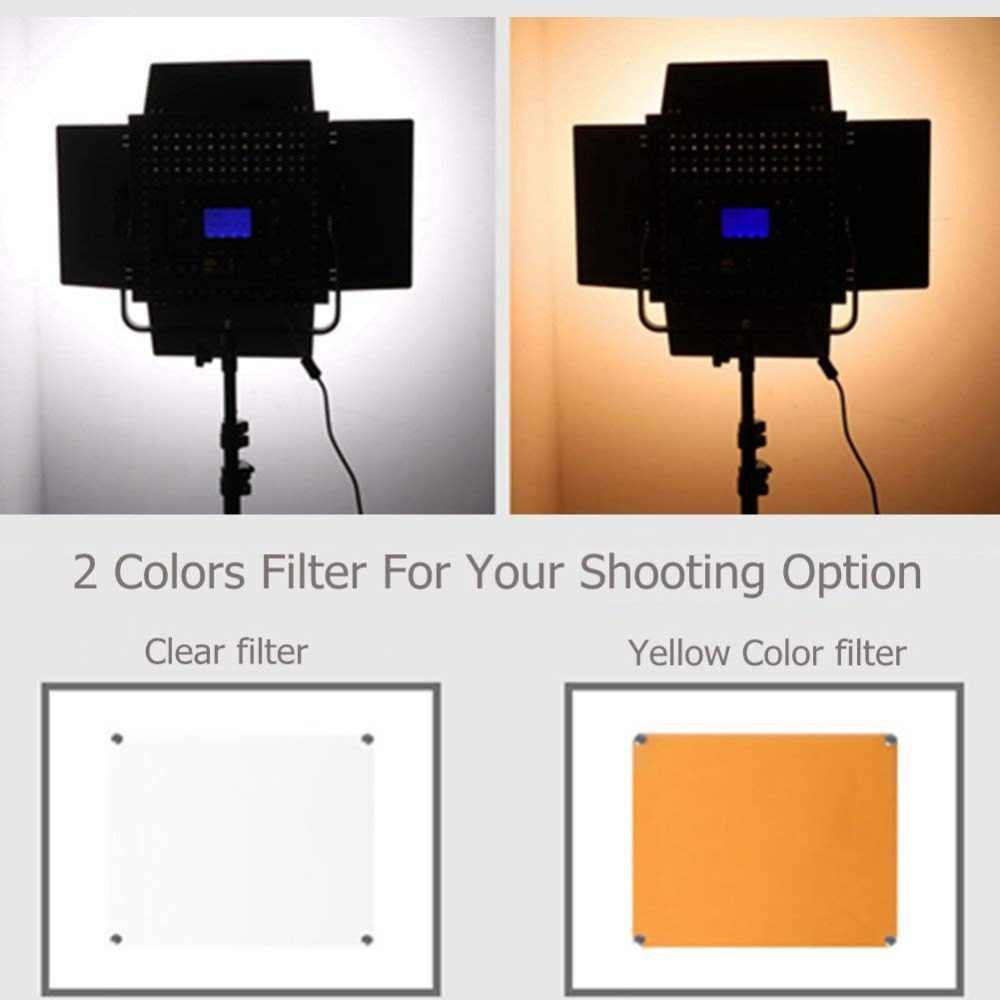

2 x Color Filter
1 x Pass Warranty Card
1 x Product Manual(English & Chinese)
1 x Original box
