Product Details
Description
Overview
- ULTRA BRIGHT, SMALL PACKAGE – This versatile light can be bright when needed, but it’s also intentionally compact and lightweight yet still durably built
- COLOR ACCURATE – With high CRI and TLCI ratings of 96 and 98, your skin tones and other colors will always be accutate, and the bi-color adjustment lets you dial-in the warmth you need
- EASY-TO-MASTER CONTROLS – Intuitive buttons, knobs, and screen on the head, Bluetooth for free NANLINK mobile app, 2.4G, and locking metal DMX port
- PREMIUM FEATURES – Dimming in 0.1% increments, advanced one-sided stepless yoke lock makes it easy to position, smart fan modes to control sound, and more
- INCLUDES CASE & 3-YEAR WARRANTY – Form-fitting, crush and shockproof foam carrying case included, 2-year limited warranty that you can extend to 3-years for free when you register online
Bi-Colour with a Vibe
Capable of delivering punchy brightness in a wide range of useful colour temperatures, the Nanlite FC-500B makes your on-camera subjects look their best—while the physical design adds its own vibe to your set.

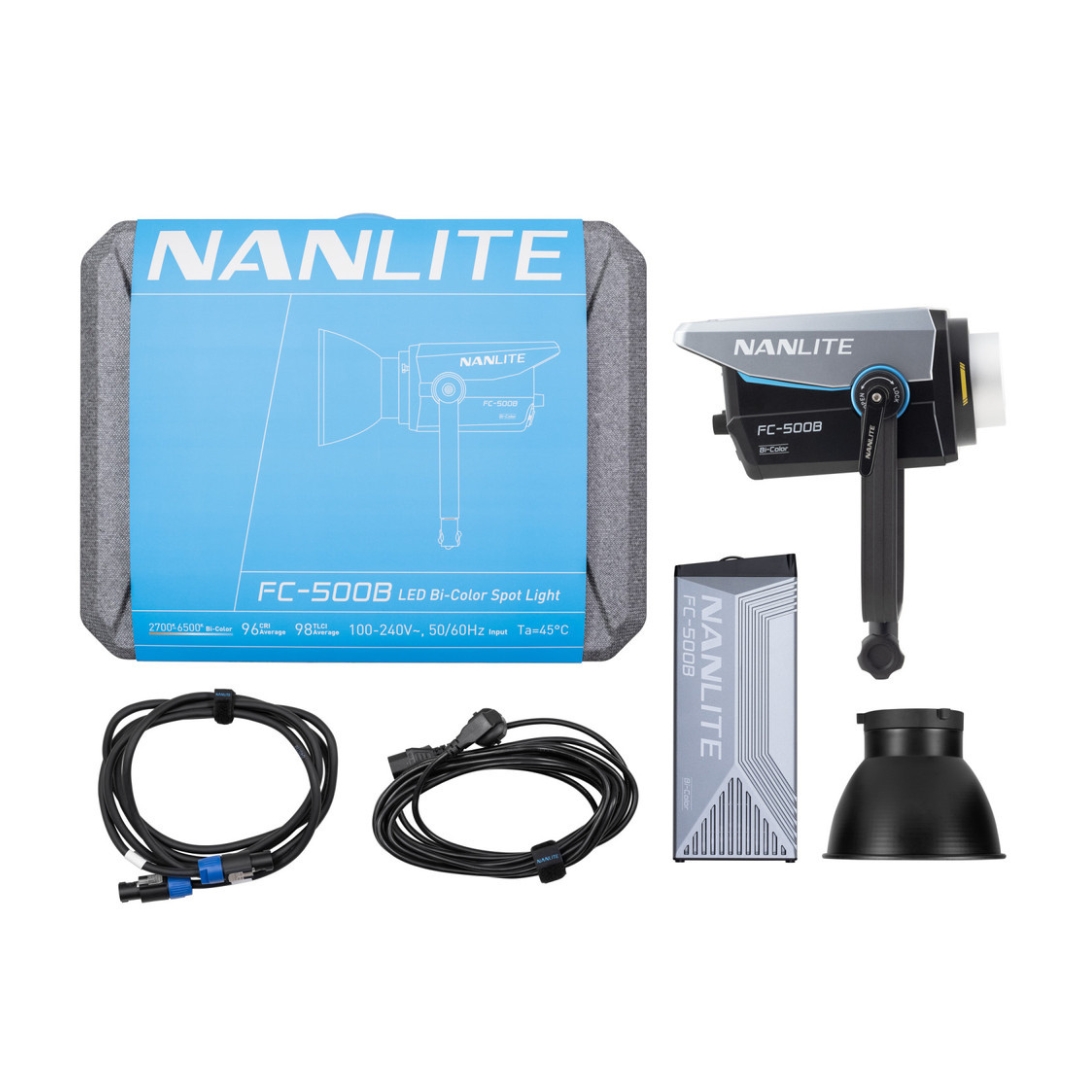

ITEM INCLUDES
- FC-500B
- Power Supply
- Reflector
- AC Power Cable 19.6′ (6M)
- Head Cable 9.8′ (3M)
- Carrying Case
- User Manual
- 2-Year Limited Warranty (Extend to 3-Year Limited With Registration on NanliteUS.com)

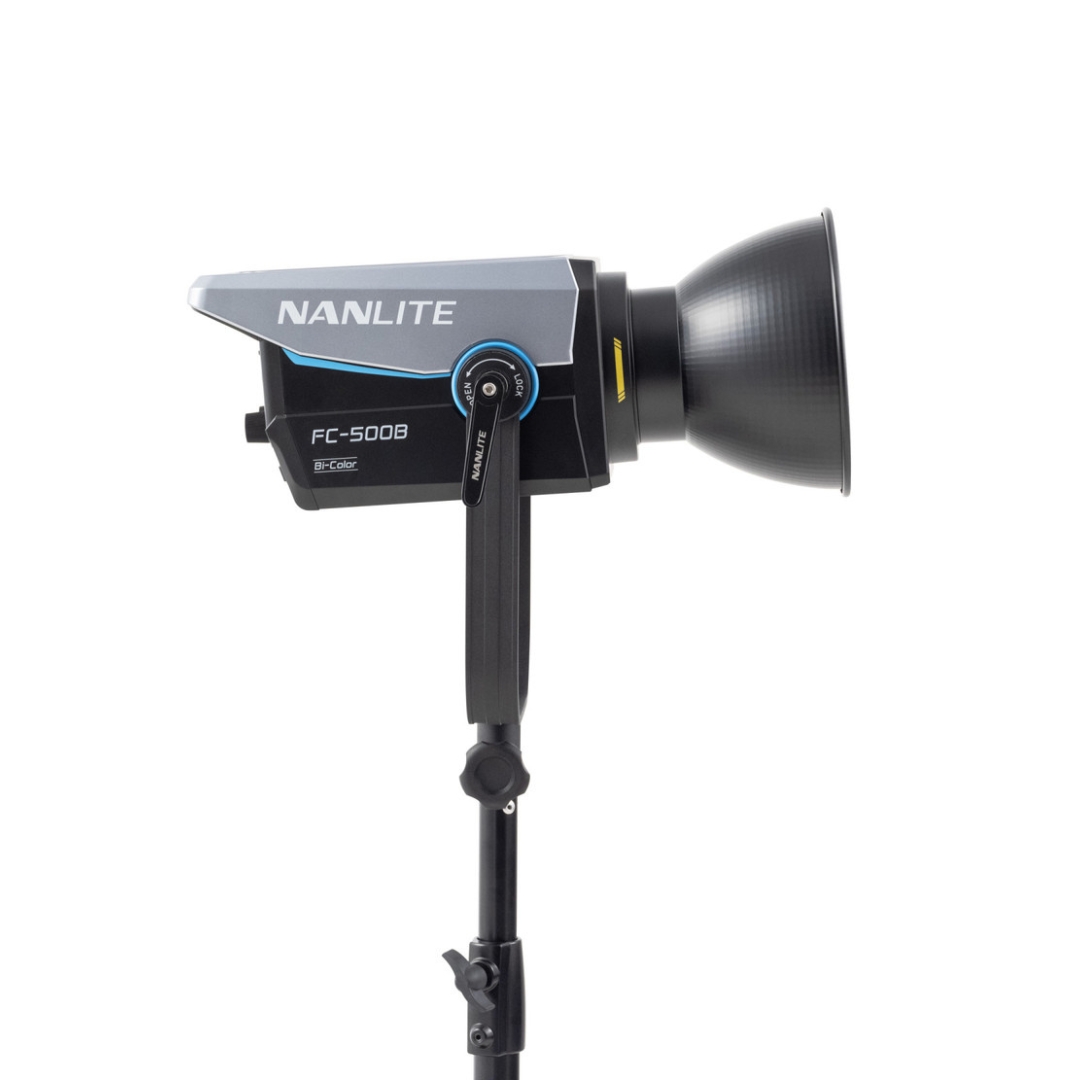

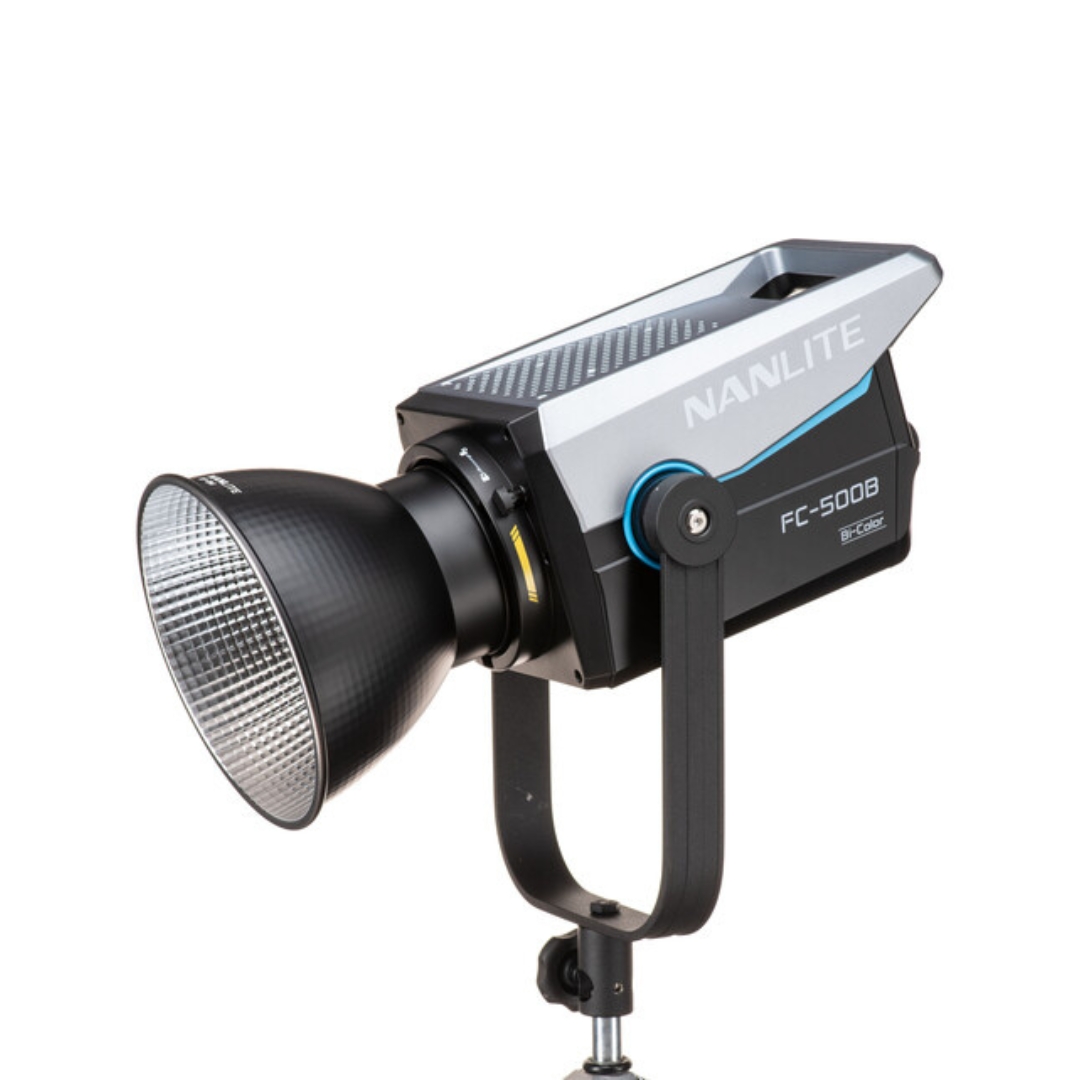

The Nanlite FC-500B is an AC-powered, bi-color LED spotlight that provides an immense amount of light in a compact, lightweight, and stylish package. You can quickly fine-tune the dimming from 0 to 100% in 0.1% increments, and with the twist of a knob achieve a wide range of looks, from warm indoor tones to bright daylight with its CCT range of 2700K-6500K. The high CRI rating of 96 and TLCI of 98 means your skin tones and other colors will always be accurate. It has easy-to-use onboard controls, Bluetooth for the free NANLINK app for iOS and Android, and 2.4G for more wireless control options. A locking, metal 3.5mm port even lets you control with DMX/RDM.

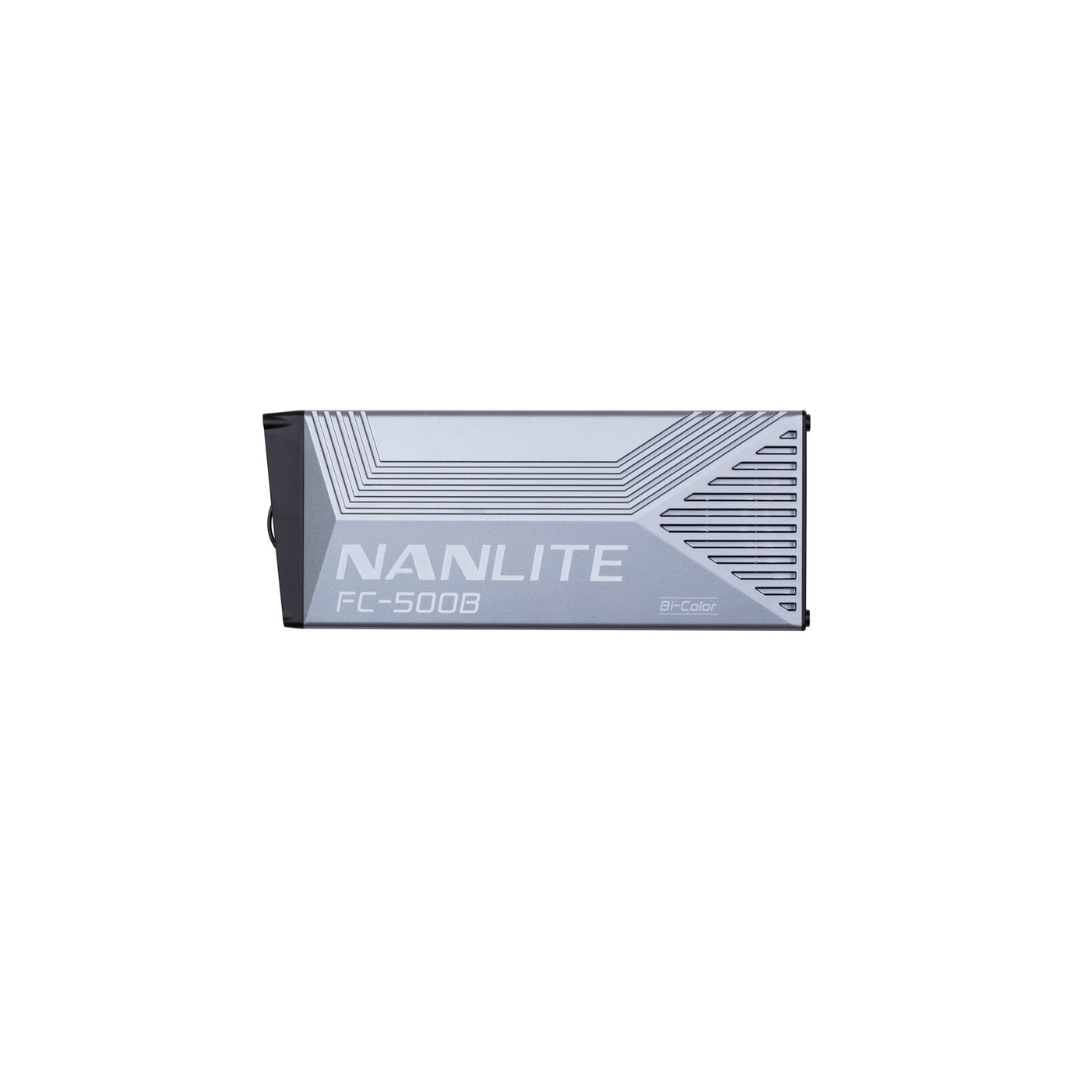

The head of the FC-500B and the power supply are separate, so each can be as lightweight as possible. The power supply has a safety strap to hang it on a light stand, and a quick-release plate is provided for more mounting options (clamp sold separately). A wide range of light modifiers are compatible with its standard Bowens Mount, and an integrated umbrella holder provides more light-shaping options. The FC-500B is powerful, versatile, accurate, and easy to use. Plus, it’s always ready to travel in the included foam case.
Bi-Color with a Vibe
Capable of delivering impressive brightness in a wide range of useful color temperatures, the Nanlite FC-500B makes your on-camera subjects look their best—while the physical design adds its own vibe to your set.
Lighting Made Easy

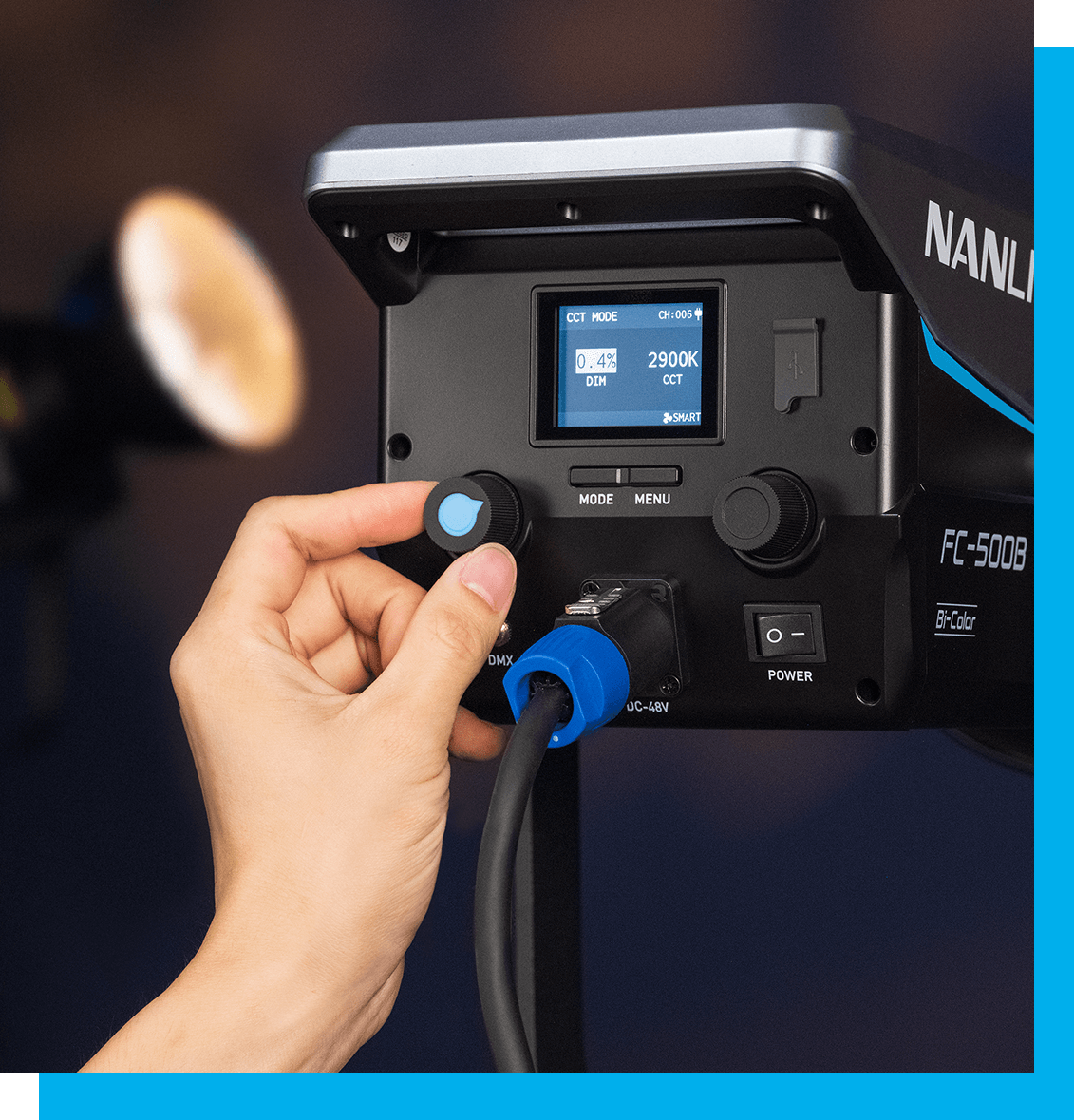

With a 2-inch screen and easy-to-master controls, the FC-500B helps you achieve professional-looking results quickly. Pressing the right knob hops to popular color temperatures, and Bluetooth lets you take command with your phone. Smart fan modes give you total control over on-set sound. It has 12 built-in effects and you can make your own and save them as presets in the app.
Advanced Details

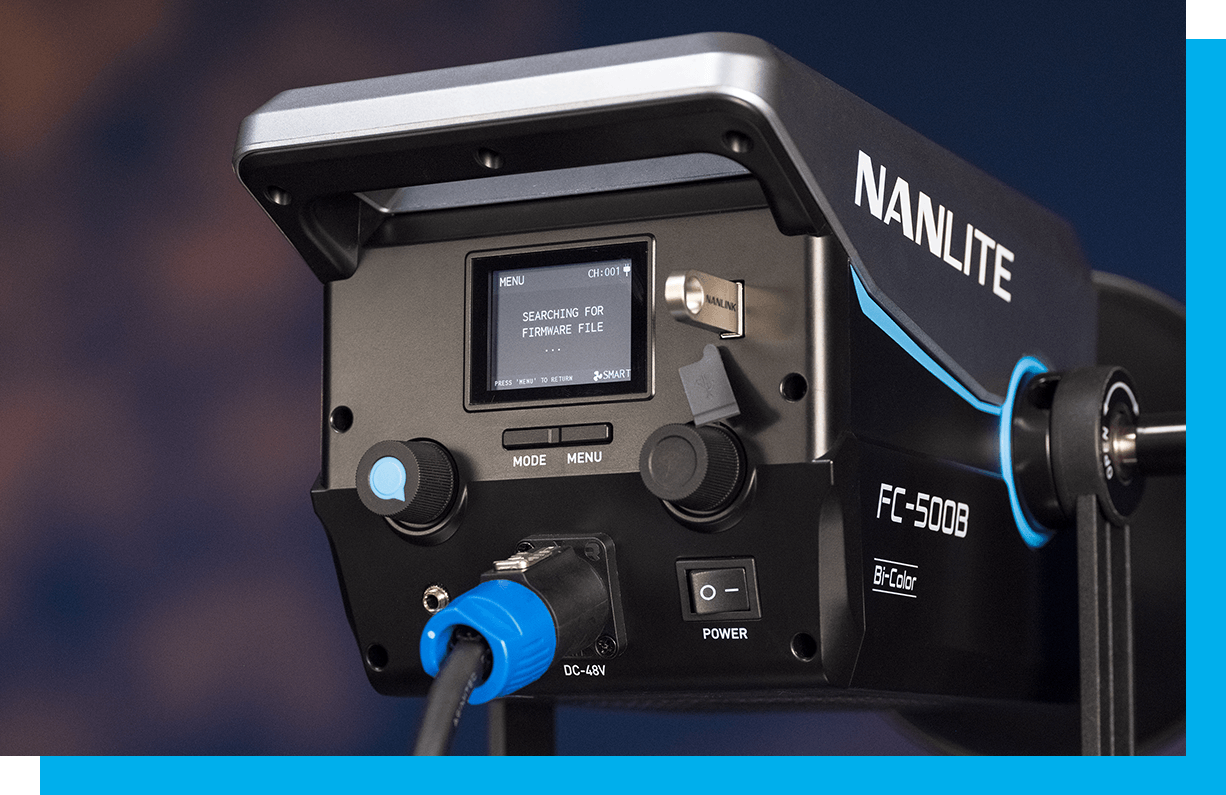

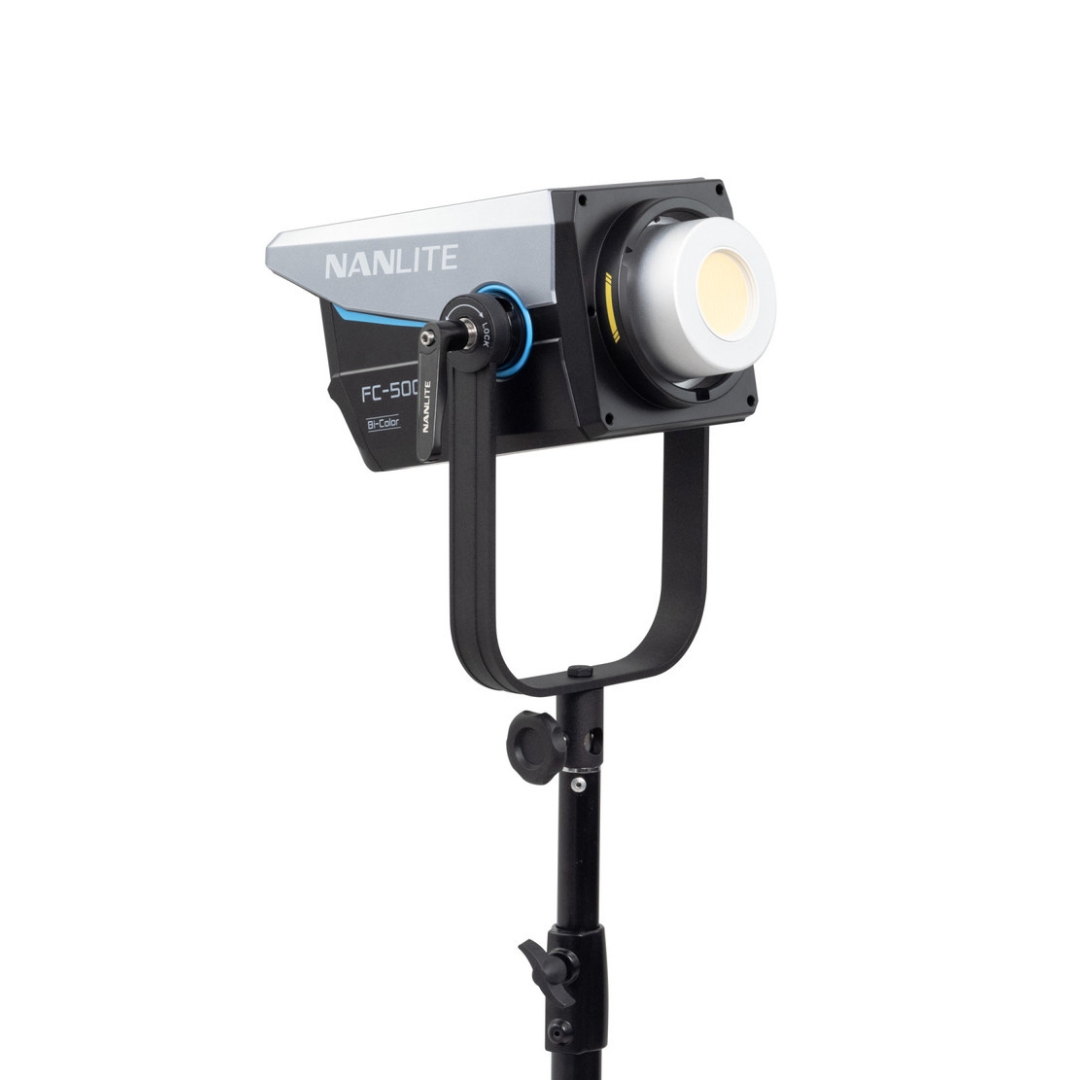

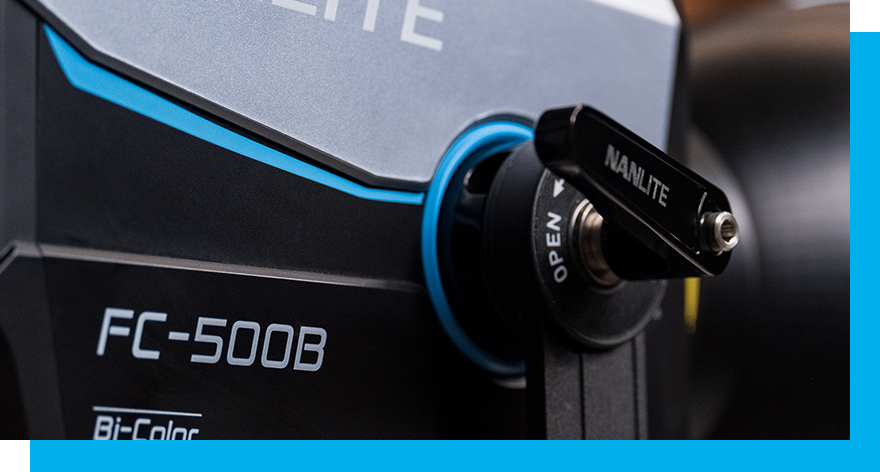

Rapidly adjust the angle the beam with its 360° rotating yoke and single-sided, stepless lock. Maximum Output Mode unleashes full power, and Constant Output Mode keeps the same intensity when you change color temperatures. A USB port allows future firmware updates so new features can be added.
Travel-Ready Case

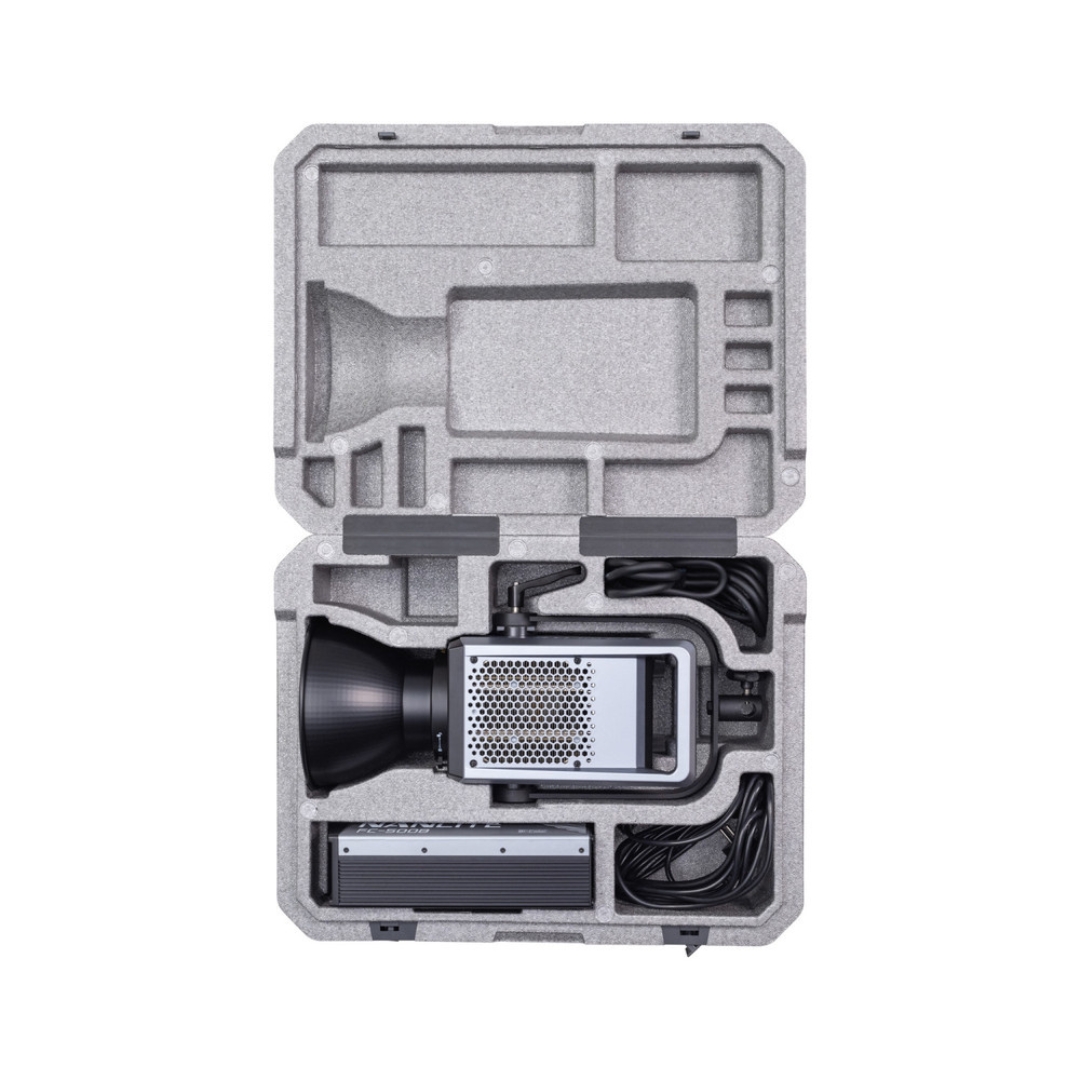

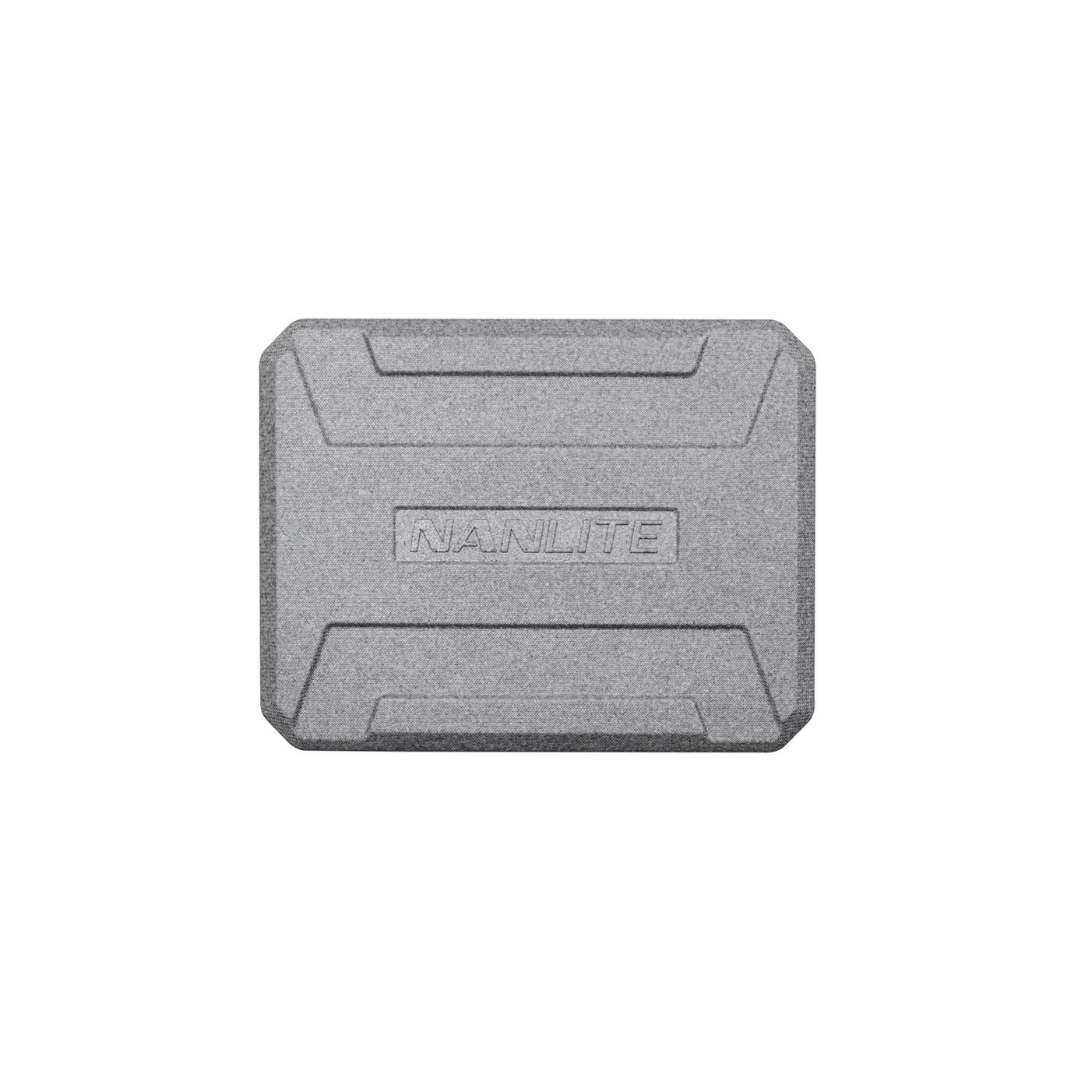

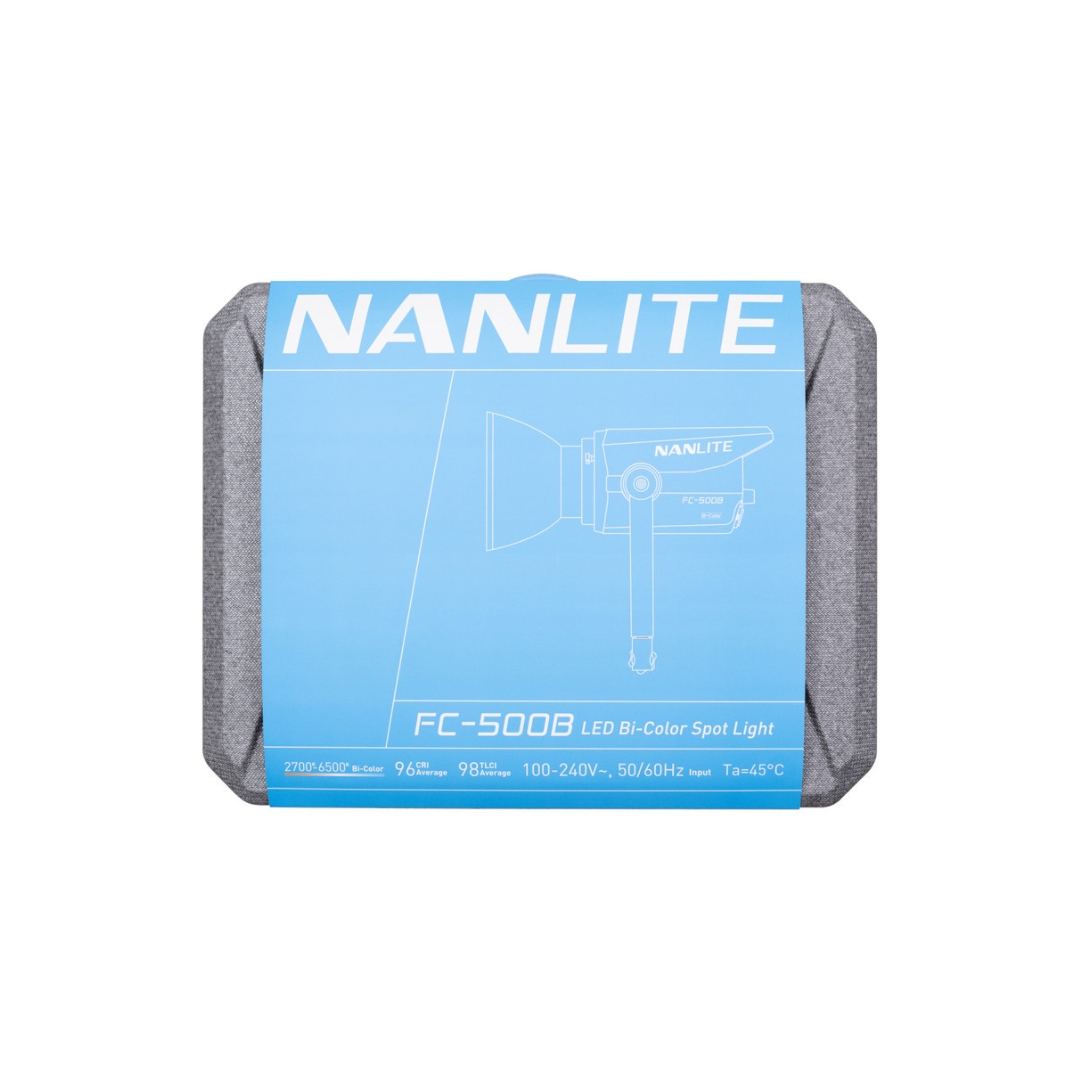

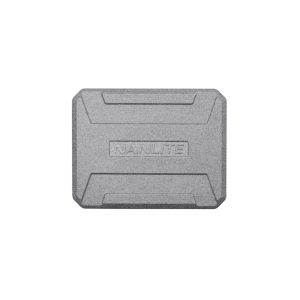

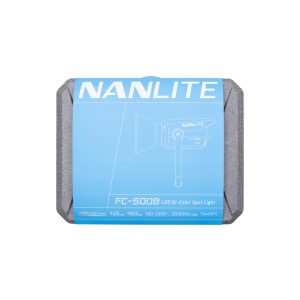

A crushproof, shockproof, corrosion-resistant, and form-fitting carrying case is included with the FC-500B, so you can safely travel and store when not in use. The FC-500B is AC-powered, and a battery-power solution will be available soon for shooting on location.
Quality Construction
Like all Nanlite products, the FC-500B is built to high standards throughout and it’s the little details, like the glass-protected light source, that make a big difference in long-term reliability.
-
ModelFC-500B
-
Rated Power520W
-
Input Voltage/CurrentAC100-240V 50/60Hz, DC48V/10.4A Max
-
Beam Angle120°
-
CCT2700K-6500K
-
CRIAverage 96
-
TLCIAverage 98
-
TM-30 RfAverage 95
-
TM-30 RgAverage 100
-
Dimming0-100%, by 0.1% increment
-
ControlOn-board, Remote Controller, NANLINK APP, DMX/RDM
-
EffectsCCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb,
Firework, Explosion and Welding -
Product SizeLight Fixture: 373.2 × 246.4 × 149mm / 14.69 × 9.70 × 5.87″
-
Product WeightLight Fixture: 3.16kg / 6.97lb
Reflector: 0.2kg / 0.44lb
AC Power Cable 6M: 0.5kg / 1.10lb
DC Connection Cable 3M: 0.39kg / 0.86lb -
CertificationsCE, UKCA, RoHS, FCC, NCC
Model | FC-500B |
---|
Light Only
|
|||
---|---|---|---|
Distance | 1M | 3M | 5M |
2700K | 16320 lux / 1516 fc | 2010 lux / 187 fc | 803 lux / 75 fc |
3200K | 17660 lux / 1641 fc | 2224 lux / 207 fc | 907 lux / 84 fc |
5600K | 21110 lux / 1961 fc | 2624 lux / 244 fc | 1065 lux / 99 fc |
6500K | 19880 lux / 1847 fc | 2526 lux / 235 fc | 1024 lux / 95 fc |
With Reflector
|
|||
---|---|---|---|
Distance | 1M | 3M | 5M |
2700K | 49250 lux / 4575 fc | 4524 lux / 420 fc | 1695 lux / 157 fc |
3200K | 54530 lux / 5066 fc | 5011 lux / 466 fc | 1873 lux / 174 fc |
5600K | 65640 lux / 6098 fc | 6005 lux / 558 fc | 2266 lux / 211 fc |
6500K | 63760 lux / 5923 fc | 5820 lux / 541 fc | 2178 lux / 202 fc |
With FL-20G Spot
|
|||
---|---|---|---|
Distance | 3M | 5M | 7M |
2700K | 15420 lux / 1433 fc | 5422 lux / 504 fc | 2790 lux / 259 fc |
3200K | 17560 lux / 1631 fc | 6123 lux / 569 fc | 3154 lux / 293 fc |
5600K | 22340 lux / 2075 fc | 7791 lux / 724 fc | 3987 lux / 370 fc |
6500K | 21530 lux / 2000 fc | 7465 lux / 693 fc | 3866 lux / 359 fc |
With FL-20G Flood
|
|||
---|---|---|---|
Distance | 3M | 5M | 7M |
2700K | 4914 lux / 457 fc | 1878 lux / 174 fc | 1031 lux / 96 fc |
3200K | 5481 lux / 509 fc | 2113 lux / 196 fc | 1157 lux / 107 fc |
5600K | 6507 lux / 605 fc | 2514 lux / 234 fc | 1362 lux / 127 fc |
6500K | 6300 lux / 585 fc | 2421 lux / 225 fc | 1320 lux / 123 fc |
With PJ-BM-19
|
|||
---|---|---|---|
Distance | 3M | 5M | 7M |
2700K | 15330 lux / 1424 fc | 5042 lux / 468 fc | 2511 lux / 233 fc |
3200K | 17250 lux / 1603 fc | 5600 lux / 520 fc | 2758 lux / 256 fc |
5600K | 21550 lux / 2002 fc | 6942 lux / 645 fc | 3411 lux / 317 fc |
6500K | 21000 lux / 1951 fc | 6803 lux / 632 fc | 3328 lux / 309 fc |
With PJ-BM-36
|
|||
---|---|---|---|
Distance | 3M | 5M | 7M |
2700K | 5515 lux / 512 fc | 1914 lux / 178 fc | 972 lux / 90 fc |
3200K | 6114 lux / 568 fc | 2101 lux / 195 fc | 1070 lux / 99 fc |
5600K | 7598 lux / 706 fc | 2590 lux / 241 fc | 1332 lux / 124 fc |
6500K | 7445 lux / 692 fc | 2558 lux / 238 fc | 1318 lux / 122 fc |
